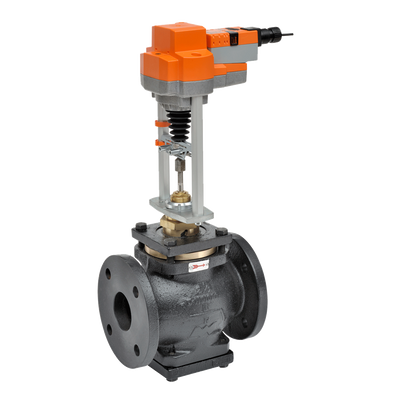

Belimo G6100C+EVB24-SR Globe Valve 4 2 Way 170 Cv with Non-Spg 24V 2-10V

Product Description

The Belimo G6100C+EVB24-SR is a globe valve designed for efficient flow control in HVAC systems. This valve operates at 24V with a two-way configuration. It features a Cv of one hundred seventy, making it suitable for various applications involving chilled or hot water and steam.

• Two-way design with high flow capacity.
• Works with 24V systems.
• Made for chilled or hot water and steam applications.

Product Highlights

This valve is ideal for regulating flow in HVAC applications. It offers consistent performance and reliability.

Product Information

Standard Information

• Brand: Belimo
• MPN: G6100C+EVB24-SR

Technical Specifications

• Valve Size: 4 inches (100 mm)
• ANSI Class: 125
• Cv: 170
• End Fitting: Flange
• Fluid: Chilled or hot water up to 60% glycol steam
• Pattern: 2-way
• Pressure Independent: No
• Trim: Bronze
• Actuator Type: Non fail-safe
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
• Electrical Connection: Cable
• Force: 2500 N (560 lbf)
• Manual Override: 5 mm hex crank (3/16 Allen) supplied
• Power Consumption (Holding): 1.5 W
• Power Consumption (Running): 5 W
• Running Time (Motor): 90 seconds
• Stroke: 2 inches (50 mm)
• Voltage AC/DC: AC/DC 24 V
