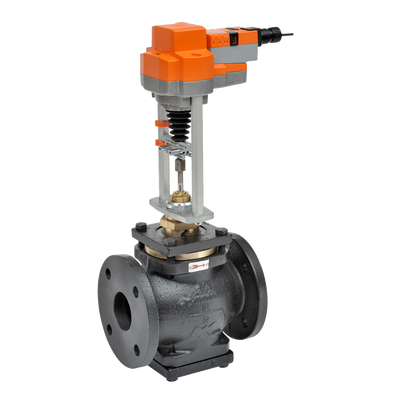

Belimo G6100C+EVB24-MFT Globe Valve 4 2 Way 170 Cv w/ Non-Spg 24V MFT

Product Description

The Belimo G6100C+EVB24-MFT is a globe valve designed primarily for use in large air handling units on heating or cooling coils. It effectively manages fluid flow in hydronic systems with variable flow capacity and is suitable for chilled or hot water applications including those with up to sixty percent glycol or steam. This valve is constructed with bronze trim, making it durable for various operational environments.

• Applicable for large air handling units
• Compatible with hydronic systems
• Bronze trim for versatile fluid applications

Product Highlights

This globe valve allows for reliable flow control, integrating well into complex HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: G6100C+EVB24-MFT

Technical Specifications

• Valve Size: 4 [100]
• Cv: 170
• End Fitting: Flange
• Fluid: Chilled or hot water up to 60% glycol steam
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Bronze
• Actuator Type: Non fail-safe
• Voltage AC/DC: AC/DC 24 V
• Operating Force: 2500 N [560 lbf]
• Stroke: 2 [50 mm]
• Running Time (Motor): 90 s
• Degree of Protection: IP54 NEMA2 UL Enclosure Type2
