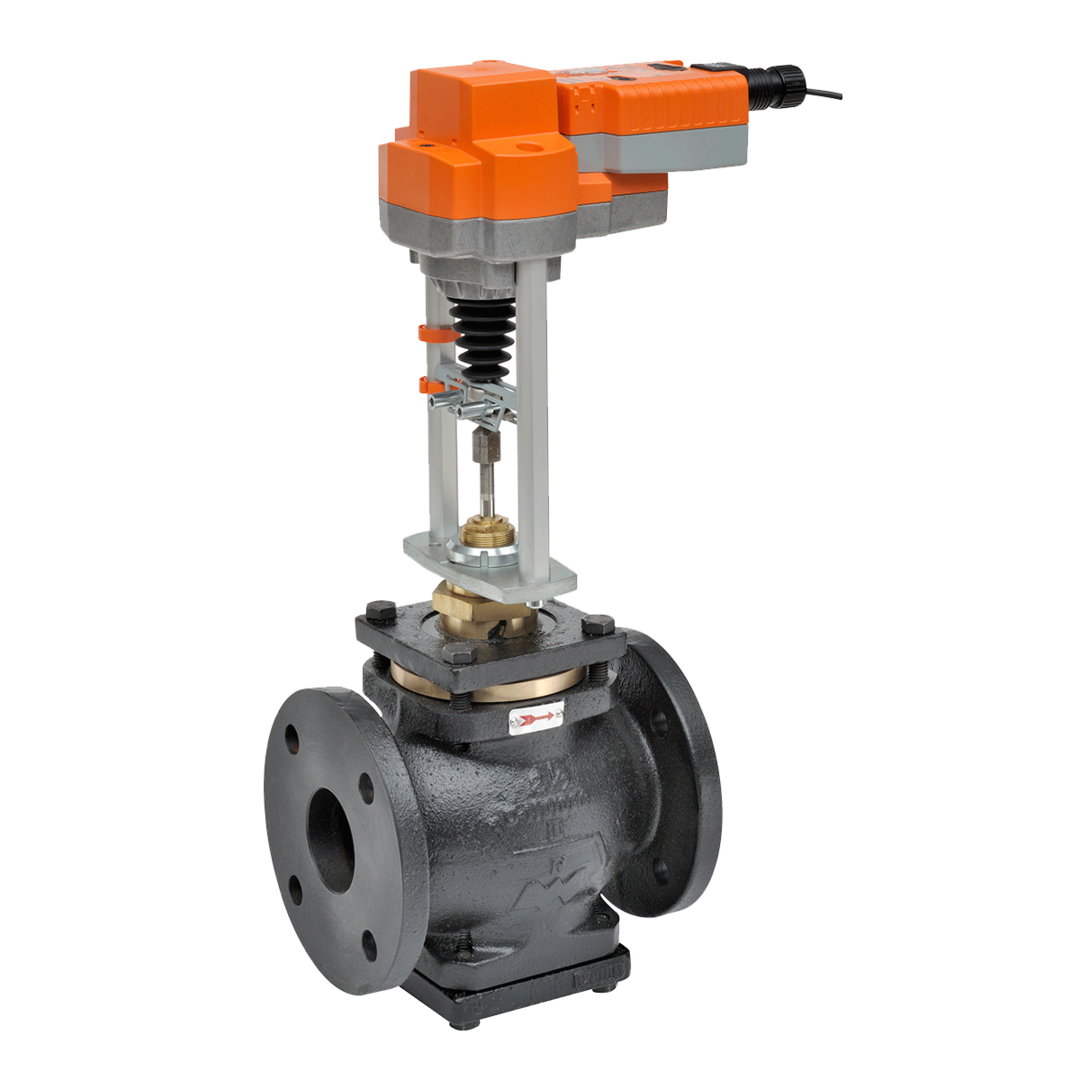

Belimo G6100C+AVKB24-MFT Globe Valve Assembly 2 Way 4 in.

Product Description

The Belimo G6100C+AVKB24-MFT is a globe valve assembly designed for HVAC applications. This two-way valve is suitable for water and steam control, capable of handling low to high pressure.

• 170 Cv flow coefficient
• Flanged connections for easy installation
• Fail-safe actuator with 450 ft.-lb linear force

Product Highlights

This valve features multi-function technology, a stainless steel seat, and actuator that ensures reliable operation in various conditions.

Product Information

Standard Information

• Brand: Belimo
• Part Number: G6100C+AVKB24-MFT

Technical Specifications

• Housing: NEMA 2, IP54, UL Enclosure Type 2
• Service: Chilled or hot water, up to 60% glycol, steam
• Flow Characteristic: Equal Percentage
• Power Consumption: 5 W running, 2 W holding
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Electrical Connections: 3 ft. 18 GA plenum rated cable with 1/2 in. conduit connector
• Actuator Type: Electrical fail-safe
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
