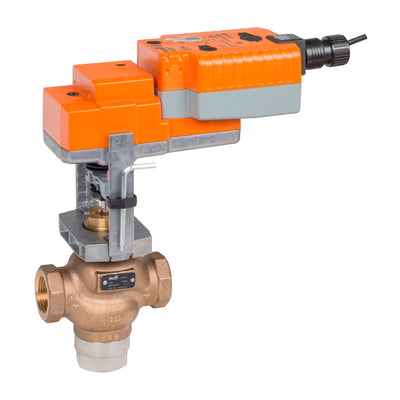

Belimo G350B-N+SVKX24-MFT Globe Valve 2 3 Way 40 Cv w/ Electronic Fail-Safe 24V MFT

Product Description

The Belimo G350B-N+SVKX24-MFT is a globe valve designed for use in heating and cooling applications. It features a three-way configuration, ideal for air handling units and fan coils. This valve is versatile for both mixing and diverting flows, suitable for hydronic systems with either constant or variable flow.

• Designed for air handling units, unit ventilators, and VAV box re-heat coils
• Electrical fail-safe actuator for reliable performance
• Compatible with chilled or hot water systems

Product Highlights

This globe valve supports a flow capacity of forty Cv and operates at twenty-four volts. It includes features for ease of installation and operation.

Product Information

Standard Information

• Brand: Belimo
• MPN: G350B-N+SVKX24-MFT

Technical Specifications

• Valve Size: 2 inches
• ANSI Class: 250
• Cv: 41
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Trim: Bronze
• Pressure Independent: NO
• Electrical Connection: Cable
• Actuator Type: Electrical fail-safe
• Voltage AC/DC: 24 V
• Running Time (Fail-safe): Less than 35 seconds
• Power Consumption (Holding): 2 W
• Power Consumption (Running): 3 W
