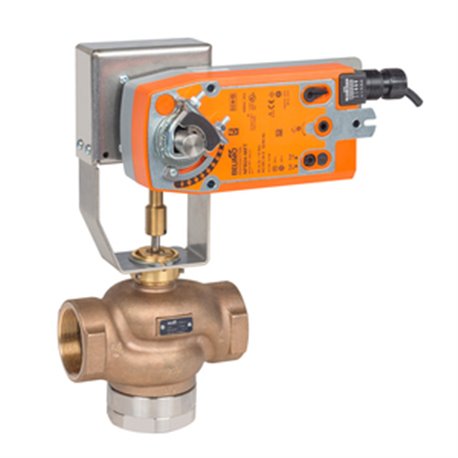

Belimo G350B-N+AFX24-MFT-X1 Globe Valve Assembly 3 Way 2 in.

Product Description

The Belimo G350B-N+AFX24-MFT-X1 is a globe valve assembly designed for effective flow control in HVAC systems. This valve operates as a three-way valve with a size of two inches. It is suitable for use with water and low to high-pressure steam control, making it versatile for various applications.

• Spring return actuator.
• Multi-function technology for advanced control.
• Constructed with a bronze body and stainless steel stem.

Product Highlights

The valve features a new soft seat design providing ANSI Class VI leakage rating and is designed for dynamic applications.

Product Information

Standard Information

• Brand: Belimo
• Part Number: G350B-N+AFX24-MFT-X1

Technical Specifications

• Power Consumption: 7.5 W Running, 3 W Holding
• Operating Conditions: -22 F to 122 F
• Valve Size: 2 inches
• Fluid: Chilled or hot water, up to 60% glycol
• Angle of Rotation: 95 degrees
• End Fitting: Internal thread
• Electrical Connection: 18 GA appliance rated cable with conduit connector
