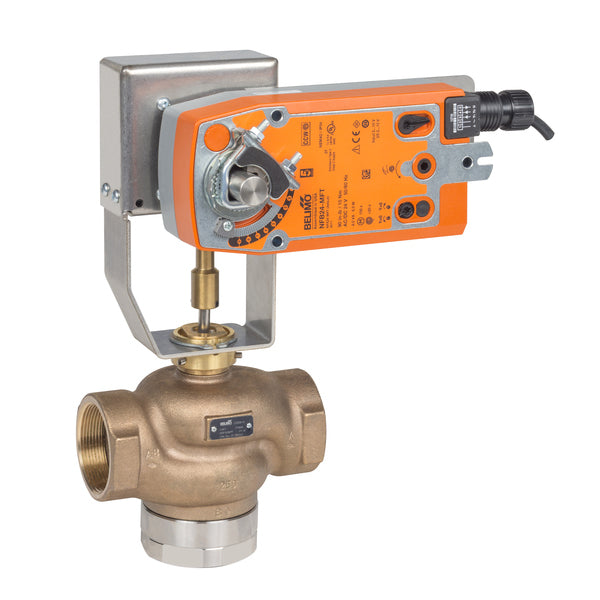

Belimo G350B-N+AFBUP-S-X1 Globe Valve 2 3 Way 40 Cv w/ Spring Return 24 -240V

Product Description

The Belimo G350B-N+AFBUP-S-X1 is a globe valve designed for effective flow control in HVAC systems. This valve features a spring return actuator, ideal for on/off control. It operates at a voltage of twenty-four to two hundred forty volts.

• 3-way design for versatile flow management
• Encased in a NEMA 2 rated enclosure
• Suitable for chilled and hot water up to sixty percent glycol

Product Highlights

This valve ensures efficient fluid control in various applications, making it essential for HVAC professionals.

Product Information

Standard Information

• Brand: Belimo
• MPN: G350B-N+AFBUP-S-X1

Technical Specifications

• Angle of Rotation: 95 degrees
• ANSI Class: 250
• Controllable Flow Range: Stem up - open B b AB
• Cv: 41
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: No
• Trim: Bronze
• Valve Size: 2 inches [50]
• Actuator Type: Spring return
• Auxiliary Switches: 2 x SPDT
• Control Type: On/Off
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
• Electrical Connection: Cable
• Manual Override: 5 mm hex crank (3/16 Allen) supplied
• Power Consumption (Holding): 3.5 W
• Power Consumption (Running): 7 W
• Running Time (Fail-safe): Less than 20 seconds
• Running Time (Motor): 75 seconds / 90 degrees
• Voltage AC/DC: AC 24...240V / DC 24...125V
