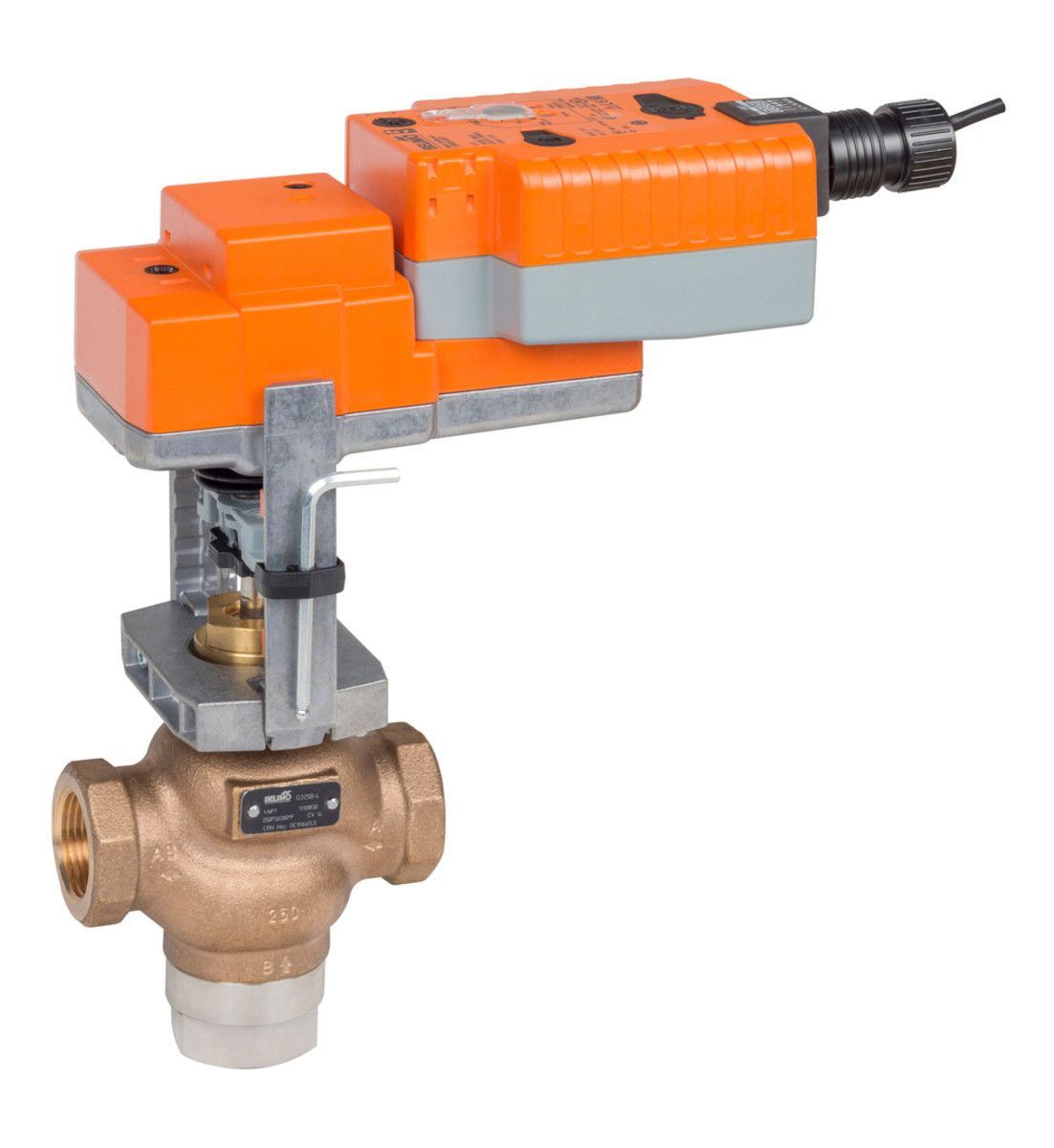

Belimo G340B-N+SVKB24-SR Globe Valve Assembly, 3 Way, 1-1/2 in.

Product Description

The BELIMO G340B-N+SVKB24-SR is a globe valve assembly, 3-way, 1-1/2 in. NPT, with a 28 Cv, bronze body, and stainless steel stem. It features direct coupling, electronic fail-safe operation, and delivers 337 lbf linear force. Designed for 24 VAC with linear modulating control from 2 to 10 VDC or 4 to 20 mA.

• 1-1/2 in. NPT connection
• Electronic fail-safe operation
• Suitable for hydronic systems with constant or variable flow

Product Highlights

This valve is used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. These 3-way valves can be used for both mixing and diverting depending on the piping configuration.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: G340B-N+SVKB24-SR
• Country of Origin: United States

Technical Specifications

• Item Number: G340B-N+SVKB24-SR
• Vendor PN: G340B-N+SVKB24-SR
• Vendor / CAT: Belimo
• ANSI Class: 250
• Cv: 28
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: NO
• Trim: Bronze
• Valve Size: 1.5" [40]
• Actuator Type: Electrical fail-safe
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
• Electrical Connection: cable
• Force: 1500 N [340 lbf]
• Manual Override: 4 mm hex crank (shipped w/actuator)
• Power Consumption (Holding): 2 W
• Power Consumption (Running): 3 W
• Running Time (Fail-safe): <35 s
• Running Time (Motor): 90 s /
• Stroke: 0.75" [19 mm]
• Voltage AC/DC: AC/DC 24 V
• Runtime: 90 Sec
• Actuator: SVKB24-SR
• Assembly: Assembly
• Feedback: 2-10vdc
• Fail-Safe: Elec Fail-Safe
• Pipe Size: 1.5 in
• Connection: NPT
• Valve Type: 3-Way
• Nema Rating: Nema 2
• Flow Pattern: Mixing/Diverting
• Power Supply: Electric
• Valve Number: G340B-N
• Close Off Pressure: Mix: 137 PSI,Divert: 46 PSI
