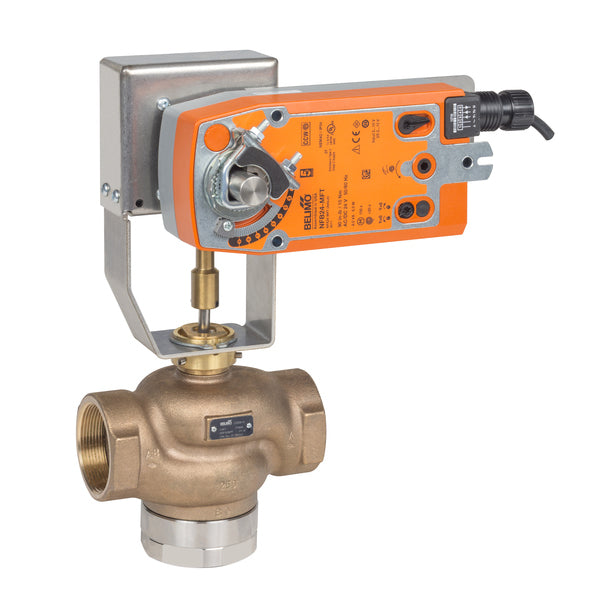

Belimo G340B-N+AFBUP-S-X1 Globe Valve 1.5 3 Way 28 Cv w/ Spring Return 24 -240V

Product Description

Belimo G340B-N+AFBUP-S-X1 is a globe valve designed for efficient flow control in HVAC systems. This valve operates at a voltage of 24 to 240 volts and features a spring return actuator for reliable positioning.

• Three-way valve with a Cv of 28.
• Designed for chilled or hot water applications with up to sixty percent glycol.
• IP54 rated for protection against dust and water.

Product Highlights

The G340B-N+AFBUP-S-X1 provides accurate control over fluid flow and is ideal for various HVAC applications. It ensures efficient performance with minimal maintenance.

Product Information

Standard Information

• Brand: Belimo
• MPN: G340B-N+AFBUP-S-X1

Technical Specifications

• Valve Size: 1.5 inches (40)
• Pattern: 3-way
• Cv: 28
• Fluid: Chilled or hot water up to 60% glycol
• Angle of Rotation: 95 degrees
• Pressure Independent: No
• Trim: Bronze
• End Fitting: Internal thread
• Actuator Type: Spring return
• Control Type: On/Off
• Degree of Protection: IP54 NEMA2 UL Enclosure Type 2
• Voltage AC/DC: AC 24…240 V / DC 24…125 V
• Power Consumption (Holding): 3.5 W
• Power Consumption (Running): 7 W
