Belimo G340B-N+AFB24-SR-X1 Globe Valve Assembly 3 Way 1-1/2 in.

Brand: BELIMO
SKU: G340B-N+AFB24-SRX1
Availability: Out Of Stock
$1,743.65
$1,743.65
Manuals:
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

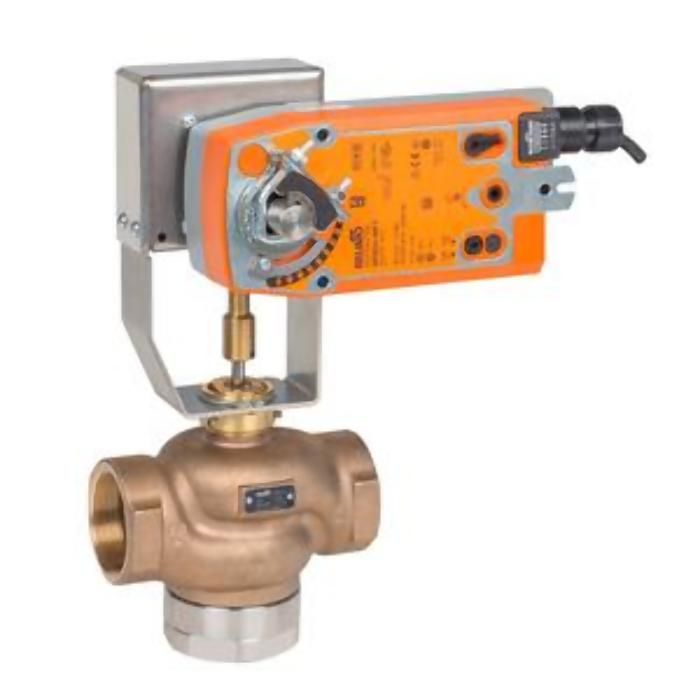

The Belimo G340B-N+AFB24-SR-X1 is a globe valve assembly designed for three-way applications. This valve is commonly used in air handling units for heating and cooling coils, as well as fan coil unit coils. It supports hydronic systems with either constant or variable flow, making it versatile for various HVAC applications.

  • Modulating control with spring return for precise flow regulation.
  • Compatible with 24 VAC/DC power supply.
  • Leakage rated to ANSI Class VI for reliable operation.

Product Highlights

This valve offers high performance for chilled or hot water service and is rated for moderate pressure applications.

Product Information

Standard Information

  • Brand: Belimo
  • Part Number: G340B-N+AFB24-SR-X1

Technical Specifications

  • Valve Size: 1.5 inches
  • Cv: 28
  • Angle of Rotation: 95 degrees
  • Electrical Connections: 3 ft. 18 GA appliance cable with half inch conduit connector
  • Power Consumption: 5.5 W running, 3 W holding
  • Operating Conditions: -22 F to 122 F
  • Fluid: Chilled or hot water up to 60% glycol
