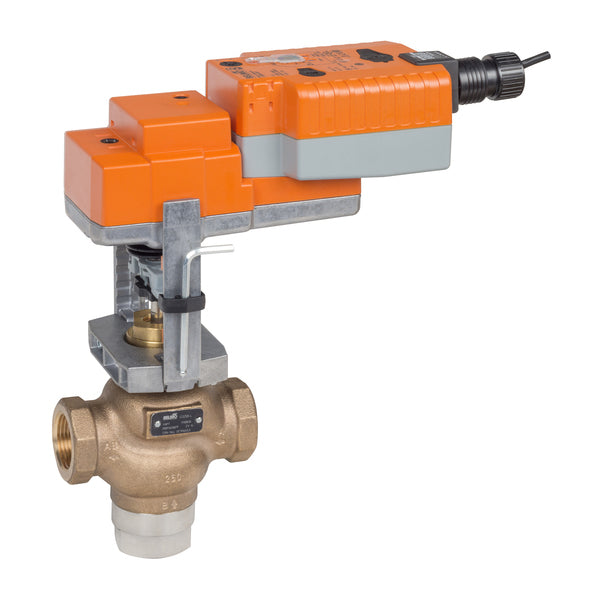

Belimo G332B-M+SVKX24-MFT Globe Valve Assembly 3 Way 1-1/4 in.

Product Description

The Belimo G332B-M+SVKX24-MFT globe valve assembly is built for efficient fluid control. This three-way valve is designed for hydronic systems, allowing for effective regulation of chilled or hot water with up to sixty percent glycol. It features a bronze body and seat, making it durable and reliable.

• 20 Cv flow coefficient
• Direct coupled actuator with electronic fail-safe
• Compatible with standard HVAC systems

Product Highlights

This globe valve assembly offers flexibility in controlling temperature and flow in various HVAC applications. Ideal for use in air handling units, this component is essential for effective heating or cooling in fan coil units.

Product Information

Standard Information

• Brand: Belimo
• Part Number: G332B-M+SVKX24-MFT

Technical Specifications

• Valve Size: 1.25 inches
• Flow Characteristic: Modified Equal Percentage, Linear B-AB
• Power Consumption: 3 W Running, 2 W Holding
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Electrical Connections: 3 ft. 18 GA Plenum Rated Cable with 1/2 in. Conduit Connector
• Service: Chilled or Hot Water, Up to 60% Glycol, Steam
• Degree of Protection: IP54, NEMA 2 UL Enclosure Type 2
• Manual Override: 4 mm hex crank (shipped with actuator)
