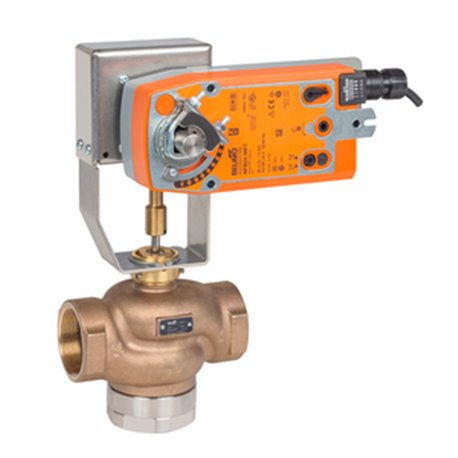

Belimo G332B-M+NFX24-MFT-X1 Globe Valve Assembly, 3 Way, 1-1/4 in.

Product Description

The Belimo Globe Valve Assembly, MPN G332B-M+NFX24-MFT-X1, is designed for use in HVAC systems. This product controls the flow of chilled or hot water. Its 3-way design allows for versatile connection options. It is suitable for applications that require reliable and efficient fluid control.

• Pressure range: 15-100 psi
• Torque rating: 90 in-lb
• Power: 24 VAC, modulating with 2 to 10 VDC and 4 to 20 mA control signals

Product Highlights

The product features a direct-coupled design with a robust bronze body and seat. It has a customizable flow characteristic, suitable for a variety of settings.

Product Information

Standard Information

• Brand: Belimo
• Part Number: G332B-M+NFX24-MFT-X1

Technical Specifications

• Valve Size: 1.25 inches
• Flow Characteristic: Modified equal percentage
• Service: Chilled or hot water, up to 60% glycol
• Temperature Operating Range: -22 F to 122 F
• Electrical Connection: 3 ft., 10 ft. or 16 ft. 18 GA appliance cables with 1/2 inch conduit connector
• ANSI Class: 250
• Degree of Protection: IP54, NEMA 2
• Power Consumption: 6.5 W running, 3 W holding
