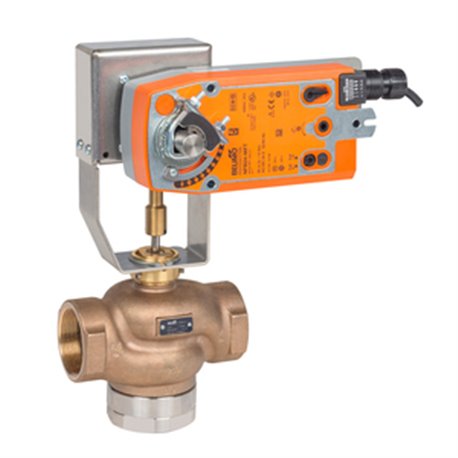

Belimo G332B-M+NFBUP-X1 Globe Valve 1.25 3 Way 20 Cv w/ Spring Return 24 -240V

Product Description

The Belimo G332B-M+NFBUP-X1 is a globe valve designed for effective flow control in various applications. It features a 1.25 inch size and operates in a three-way configuration, making it suitable for both heating and cooling systems. This valve has a control type classified as On/Off and is powered by voltage ranging from twenty-four to two hundred forty volts. It includes a spring return actuator for reliable operation.

• Three-way valve configuration
• Voltage compatibility: 24 to 240V
• Spring return actuator ensuring fail-safe functionality

Product Highlights

This valve is ideal for controlling chilled or hot water systems and can handle up to sixty percent glycol mixtures. Its robust design and reliable performance make it suitable for HVAC and plumbing applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: G332B-M+NFBUP-X1

Technical Specifications

• Valve Size: 1.25 inches
• Cv: 20
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: No
• Trim: Bronze
• Angle of Rotation: 95 degrees
• Electrical Connection: Cable
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 6 W
• Running Time (Fail-safe): Less than 20 seconds
• Voltage AC/DC: AC 24...240 V / DC 24...125 V
