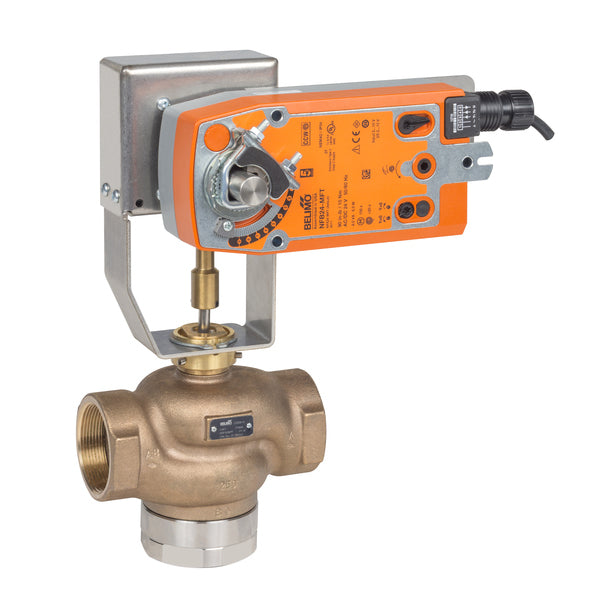

Belimo G332B-M+NFBUP-S-X1 Globe Valve Assembly 3 Way 1-1/4 in.

Product Description

The Belimo G332B-M+NFBUP-S-X1 is a three-way globe valve assembly designed for water and steam control applications. It is suitable for use in HVAC systems with chilled or hot water. This valve features a robust bronze body and seat, providing durability in various conditions. Its spring return actuator supports on-off control with a voltage range of twenty-four to two hundred forty volts.

• Designed for water and low to high pressure steam control
• Features ANSI Class VI leakage rating
• Compatible with chilled or hot water, up to sixty percent glycol

Product Highlights

The G332B-M+NFBUP-S-X1 valve effectively manages fluid flow in HVAC systems, ensuring efficient heating and cooling. Its reliable construction supports a maximum inlet pressure of one hundred psi.

Product Information

Standard Information

• Brand: Belimo
• Part Number: G332B-M+NFBUP-S-X1

Technical Specifications

• Valve Size: 1.25 inches
• Cv: 20
• Angle of Rotation: 95 degrees
• Pressure Independent: No
• Trim Material: Bronze
• Control Type: On/Off
• Auxiliary Switches: 2 x SPDT
• Power Consumption: 6 W Running, 2.5 W Holding
• Electrical Connection: Two 3 ft. 18 GA Appliance Cables
