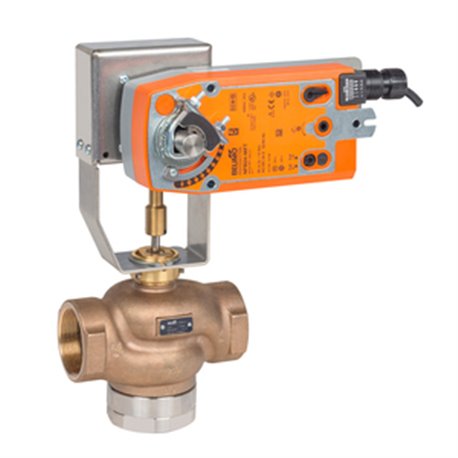

Belimo G332B-M+NFB24-SR-X1 Globe Valve Assembly 3 Way 1-1/4 in.

Product Description

The Belimo G332B-M+NFB24-SR-X1 is a globe valve assembly with three-way configuration, ideal for controlling the flow of chilled or hot water in HVAC systems. This valve is suitable for various applications, including air handling units, fan coil units, and reheat coils. Its design supports both mixing and diverting functions based on the system setup.

• 20 Cv flow capacity
• Direct coupled actuator with spring return
• 24 V DC control signal compatibility

Product Highlights

This valve provides reliable operation under varying conditions, ensuring efficient system performance.

Product Information

Standard Information

• Brand: Belimo
• Part Number: G332B-M+NFB24-SR-X1

Technical Specifications

• Valve Size: 1.25 inches
• Pattern: 3-way
• Fluid: Chilled or hot water with up to 60% glycol
• Power Consumption: 3.5 W running, 2.5 W holding
• Operating Conditions: -22°F to 122°F
• Electrical Connection: 3 feet of 18 AWG appliance cable
• Control Signal: DC 2 to 10 V or 4 to 20 mA
• Degree of Protection: IP54 NEMA 2
