Belimo G325B-L+SVKB24-3 Globe Valve Assembly 1 in.

Product Description

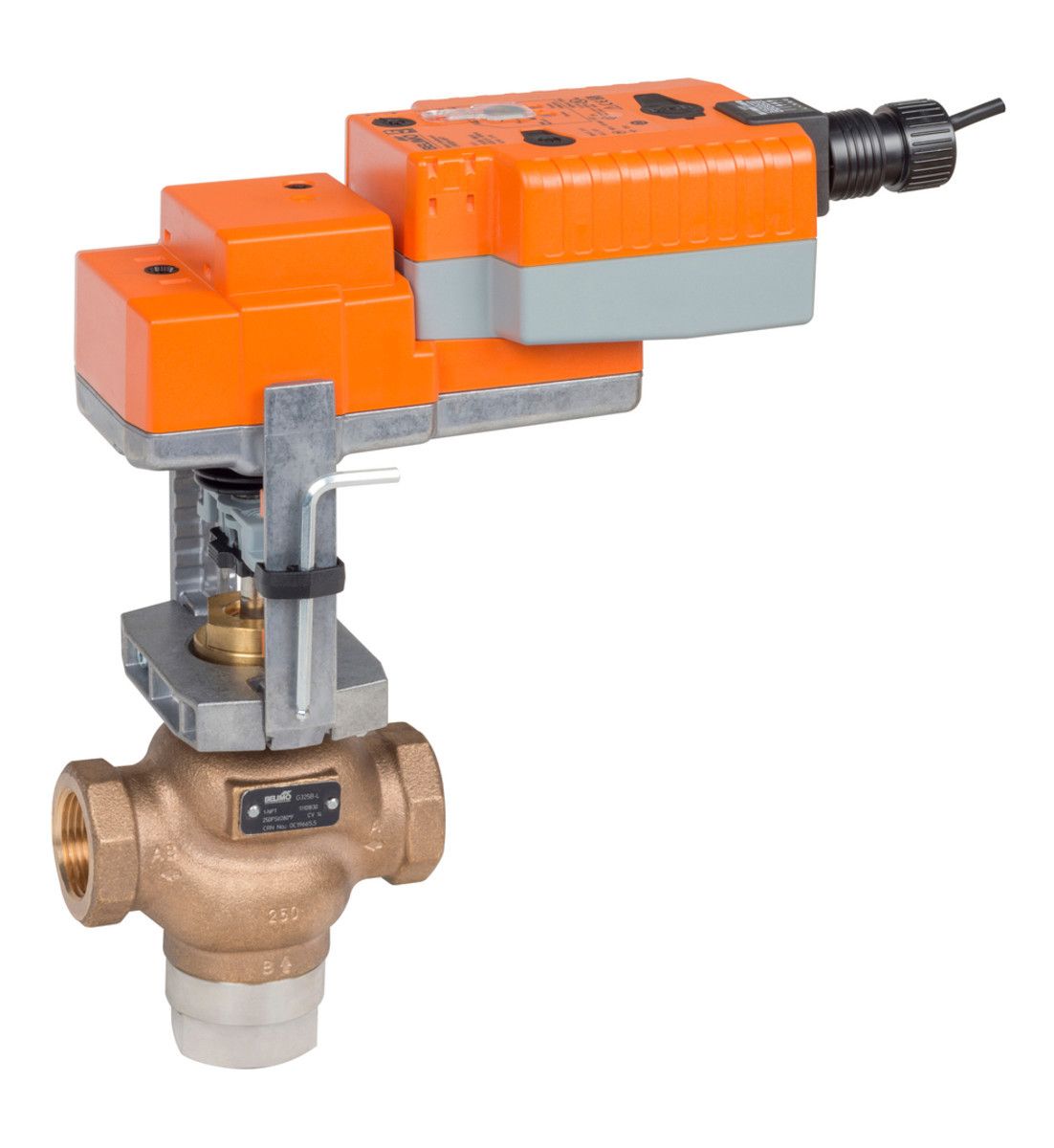

The BELIMO G325B-L+SVKB24-3 is a globe valve assembly with a 1-inch NPT connection and a 14 Cv flow coefficient. It features a bronze body and seat, stainless steel stem, and a direct-coupled actuator. Designed for use in air handling units and hydronic systems, this valve provides reliable control in heating and cooling applications.

• Used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils
• Suitable for use in hydronic systems with variable flow
• Features electronic fail-safe

Product Highlights

This globe valve assembly is ideal for HVAC systems, providing precise control and reliable performance.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: G325B-L+SVKB24-3
• Country of Origin: United States

Technical Specifications

• Housing: NEMA 2, IP54, UL Enclosure Type 2
• Service: Chilled Or Hot Water, Up To 60% Glycol
• Power Consumption: 3 W Running, 2 W Holding
• Flow Characteristic: Modified Equal Percentage, Linear B To AB
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: 3 ft. 18 GA Plenum Rated Cable With 1/2 in. Conduit Connector Protected NEMA 2/IP54
• ANSI Class: 250
• Cv: 14
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: NO
• Trim: Bronze
• Valve Size: 1" - 3 Way
• Actuator Type: Electrical fail-safe
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
• Force: 1500 N [340 lbf]
• Manual Override: 4 mm hex crank (shipped w/actuator)
• Power Consumption (Holding): 2 W
• Running Time (Fail-safe): <35 s
• Running Time (Motor): 90 s /
• Stroke: 0.75"[19 mm]
• Voltage AC/DC: AC 24 V
• Runtime: 90 Sec
• Actuator: SVKB24-3
• Assembly: Assembly
• Fail-Safe: Elec Fail-Safe
• Pipe Size: 1 in
• Connection: NPT
• Valve Type: 3-Way
• Nema Rating: Nema 2
• Flow Pattern: Mixing/Diverting
• Power Supply: Electric
• Valve Number: G325B-L
• Control Signal: On/Off, Floating
• Close Off Pressure: Mix: 250 PSI,Divert: 109 PSI
• Body Pressure Rating: ANSI Class 250, up to 400 psi below 150 F
• Power Consumption For Wire Sizing: 7 VA
• Control Type: Floating/3-point
• Protection category: IP54
• Degree Of Protection NEMA: NEMA 2
• Enclosure Type: UL Enclosure Type 2
• Brand: Belimo
• Supply Voltage (Nominal): 24 VAC
• Trim Material: Bronze
• Actuator Manual Override: All models except LF
• Actuator Electrical Connection: 3' (1mm) cable with 1/2" conduit fitting standard
• Connections: NPT female ends
• Maximum Pressure Rating: 250 psi
• Media Compatibility: Chilled or Hot Water, 60% Glycol, Steam (G2, G2S)
• Pipe Size Range: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
• Minimum Closeoff: 85 psi
• Maximum Differential Pressure: Water 35 psi (241 kPa); Steam 20 psi (138 kPa) to 35 psi (241 kPa)
• Maximum Inlet Pressure: Steam 35 psi (241 kPa)
• Cv Range: 7.6 6
• Close-Off Pressure Mixing: 250 psi
• Close-Off Pressure Diverting: 109 psi
• Suitable valves: G325B-L
• Suitable actuators: SVKB24-SR
• Item Number: G325B-L+SVKB24-3
• Control Input: Floating
• Control Valves Type: Globe Valve
• Cv / GPM: 14 Cv
• Spring Return: Electronic Fail-Safe
• Voltage: 24V
• MPN: G325B-L+SVKB24-3
• Condition: New
