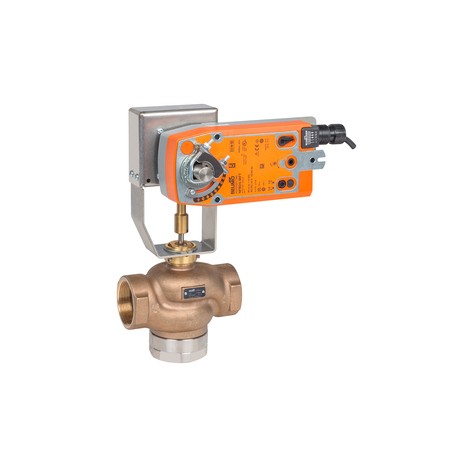

Belimo G325B-L+NFX24-MFT-X1 Globe Valve Assembly 3 Way 1 in.

Product Description

The Belimo G325B-L+NFX24-MFT-X1 is a globe valve assembly designed for efficient control of chilled or hot water systems. This 3-way valve has a one-inch size and offers a Cv of 14 for optimal flow management. It features a bronze body and seat, stainless steel stem, and is suitable for both mixing and diverting applications in hydronic systems.

• Compatible with water and low to high pressure steam control from 15 to 100 psi.
• ANSI Class VI leakage rating with a new soft seat design.
• Modulating function with 24 VAC power supply and support for both 2 to 10 VDC and 4 to 20 mA control signals.

Product Highlights

Utilize this globe valve for effective flow control in HVAC systems and water-based heating or cooling applications.

Product Information

Standard Information

• Brand: Belimo
• Part #: G325B-L+NFX24-MFT-X1

Technical Specifications

• Housing: NEMA 2, IP54, UL Enclosure Type 2
• Service: Chilled or hot water, up to 60% glycol
• Power Consumption: 6.5 W running, 3 W holding
• Flow Characteristic: Modified equal percentage, linear B to AB
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Electrical Connections: 3 ft., 10 ft., and 16 ft. 18 GA appliance cable with 1/2 in. conduit connector
• Torque Rating: 90 in-lb
• Control Type: MFT/Programmable
