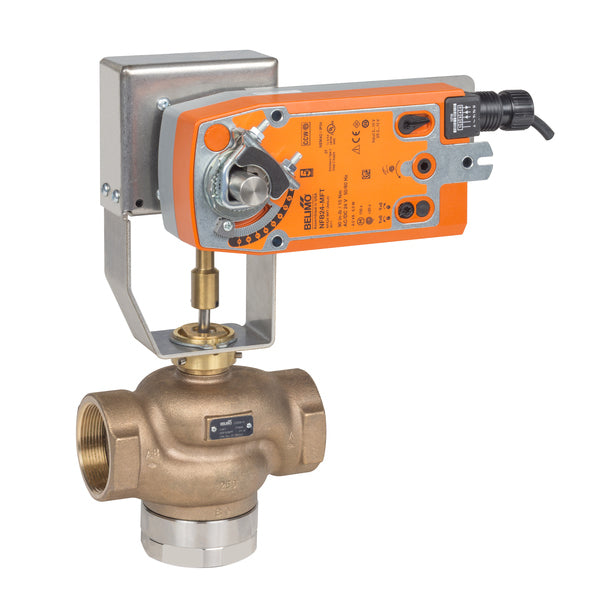

Belimo G325B-L+NFBUP-X1 Globe Valve 1 3 Way 14 Cv w/ Spring Return 24 -240V On/Off

Product Description

Belimo G325B-L+NFBUP-X1 is a globe valve designed for 3-way operation. This model operates with 14 Cv and features a spring return mechanism. The voltage range for this valve is between 24 to 240 volts, providing flexibility in various applications. It is suitable for controlling chilled or hot water with up to sixty percent glycol.

• Three-way pattern for versatile flow control
• Internal thread end fitting for secure connections
• Spring return actuator type to ensure fail-safe operation

Product Highlights

This globe valve is ideal for HVAC applications where reliable flow control is required. It supports both on/off control types and is protected by an IP54 NEMA2 rated enclosure, making it suitable for various environmental conditions.

Product Information

Standard Information

• Brand: Belimo
• MPN: G325B-L+NFBUP-X1

Technical Specifications

• Type: Globe Valve
• Connections: Internal Thread
• Cv: 14
• Voltage: AC24...240V / DC24...125V
• Fluid Type: Chilled or hot water (up to 60% glycol)
• Angle of Rotation: 95 degrees
• Control Type: On/Off
• Protection Rating: IP54 NEMA2
