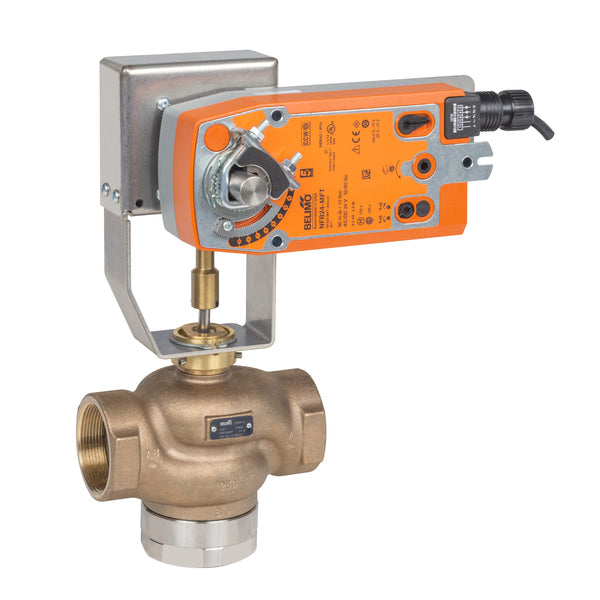

Belimo G325B-L+NFBUP-S-X1 Globe Valve 1 3 Way 14 Cv w/ Spring Return 24 -240V On/Off SW

Product Description

The Belimo G325B-L+NFBUP-S-X1 is a globe valve designed for efficient flow control in various HVAC applications. This valve operates on 24 to 240 volts and features a spring return mechanism, ensuring quick response times and reliable operation. Its design supports a 3-way configuration, making it suitable for complex piping systems where flow direction needs to be controlled.

• Type: Spring return globe valve
• Voltage: 24-240 AC/DC
• Flow coefficient (Cv): 14

Product Highlights

This valve is integral in managing both chilled and hot water systems, providing flexibility and adaptability in various scenarios.

Product Information

Standard Information

• Valve Size: 1 inch
• Pattern: 3-way

Technical Specifications

• Angle of Rotation: 95 degrees
• Pressure Independent: No
• Fluid: Chilled or hot water up to 60% glycol
• AUX Switches: 2 x SPDT
• Actuator Type: Spring return
• Electrical Connection: Cable
• Degree of Protection: IP54 NEMA2 UL Enclosure Type2
• Trim: Bronze
