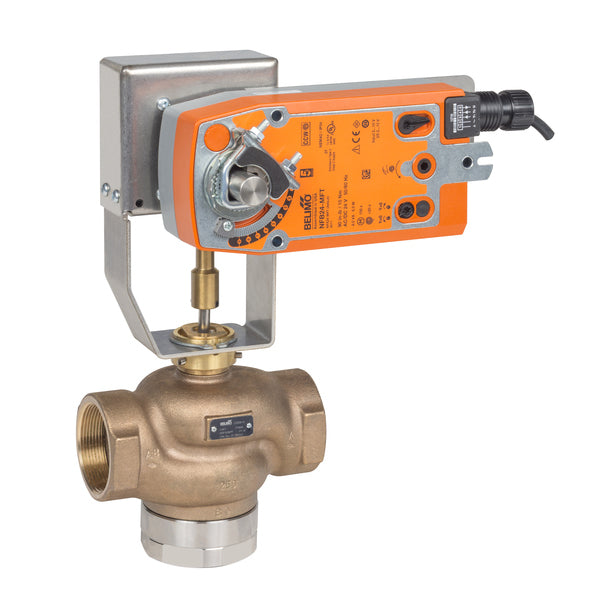

Belimo G320B-K+NFBUP-S-X1 Globe Valve 0.75 3 Way 6.75 Cv w/ Spring Return 24 -240V On/Off SW

Product Description

The Belimo G320B-K+NFBUP-S-X1 is a globe valve designed for efficient fluid control in HVAC systems. It features a three-way configuration with a size of 0.75 inches and a flow coefficient (Cv) rating of 6.75, suitable for applications requiring effective modulation of water flow. This valve operates with a 24 to 240-volt spring return actuator, making it ideal for on/off control in various settings.

• Three-way design for versatile flow control
• Spring return actuator for dependable operation
• Compatible with chilled or hot water systems

Product Highlights

Built to meet industry standards, it offers durability and reliable performance in demanding conditions.

Product Information

Standard Information

• Brand: Belimo
• MPN: G320B-K+NFBUP-S-X1

Technical Specifications

• Valve Size: 0.75 inches
• Pressure Class: ANSI Class 250
• Cv: 6.75
• Angle of Rotation: 95 degrees
• Pattern: 3-way
• End Fitting: Internal thread
• Fluid Type: Chilled or hot water, up to 60% glycol
• Actuator Type: Spring return
• Voltage AC/DC: AC 24...240V / DC 24...125V
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 6 W
• Manual Override: 5 mm hex crank
• Degree of Protection: IP54 NEMA type 2
