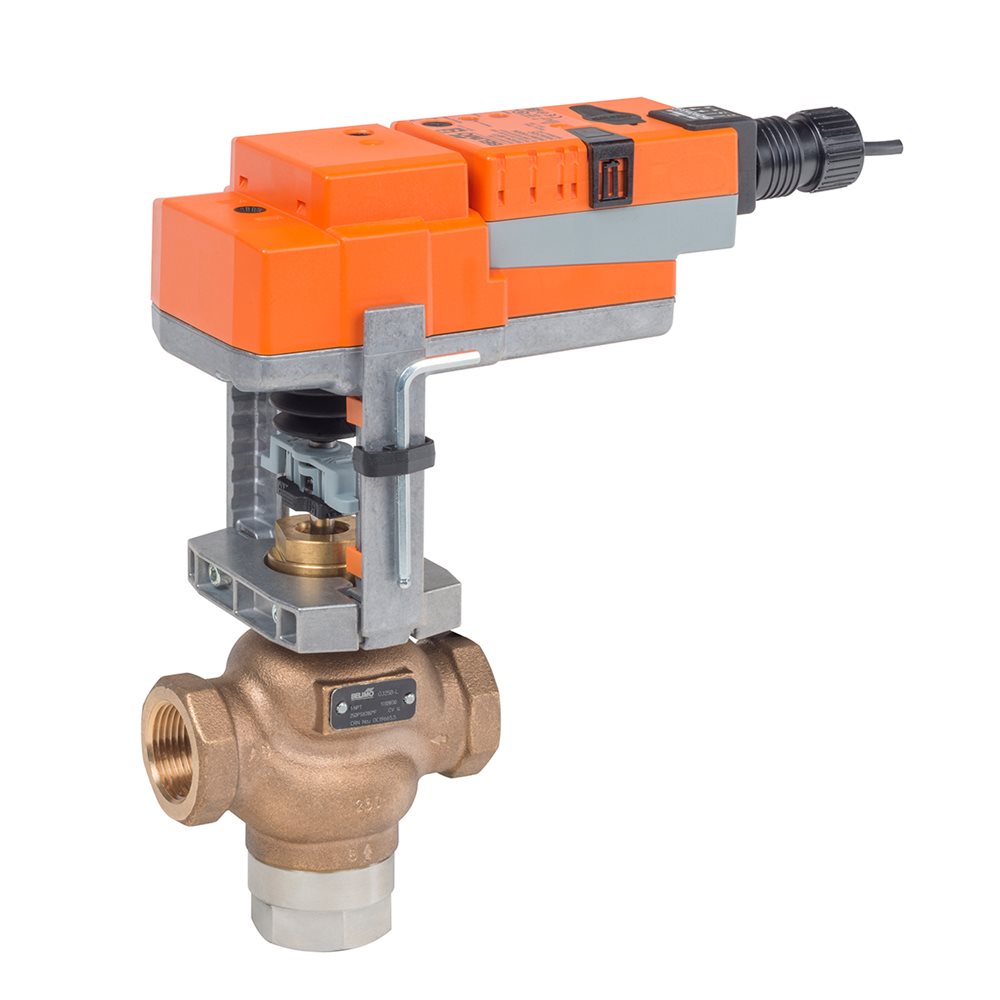

Belimo G315B-G+SVB24-3 Globe Valve Assembly 2.2 Cv

Product Description

The BELIMO G315B-G+SVB24-3 is a globe valve assembly with a 1/2 inch NPT, 2.2 Cv, bronze body, bronze seat, and stainless steel stem. It features a direct-coupled actuator with 340 ft.-lb linear force, and is designed for on/off, floating point, non-spring return operation at 24 VAC.

• Greater Force And Flexibility
• For Use With Water And Low To High Pressure Steam Control, 15-100 psi Inlet
• New Soft Seat Design Providing ANSI Class VI Leakage Rating

Product Highlights

This globe valve assembly is ideal for HVAC applications, providing precise control of hot or chilled water and steam.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: G315B-G+SVB24-3
• Country of Origin: United States

Technical Specifications

• Housing: NEMA 2, IP54, UL Enclosure Type 2
• Service: Chilled Or Hot Water, Up To 60% Glycol, Steam
• Power Consumption: 2 W Running, 1.5 W Holding
• Flow Characteristic: Modified Equal Percentage, Linear B To AB
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connections: 3 ft. 18 GA Plenum Rated Cable With 1/2 in. Conduit Connector Protected NEMA 2
• ANSI Class: 250
• Controllable Flow Range: Stem up - open B b AB
• Cv: 2.2
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: NO
• Trim: Bronze
• Valve Size: 0.5" [15]
• Actuator Type: Non fail-safe
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
• Electrical Connection: cable
• Force: 1500 N [340 lbf]
• Manual Override: 4 mm hex crank (shipped w/actuator)
• Power Consumption (Holding): 1.5 W
• Power Consumption (Running): 2 W
• Running Time (Motor): 90 s /
• Stroke: 0.75" [19 mm]
• Voltage AC/DC: AC/DC 24 V
• Runtime: 90 Sec
• Actuator: SVB24-3
• Assembly: Assembly
• Fail-Safe: Non-Spring Return
• Pipe Size: 0.5 in
• Connection: NPT
• Valve Type: 3-Way
• Nema Rating: Nema 2
• Flow Pattern: Mixing/Diverting
• Power Supply: Electric
• Valve Number: G315B-G
• Control Signal: On/Off, Floating
• Close Off Pressure: Mix: 250 PSI,Divert: 250 PSI
• Body Pressure Rating: ANSI Class 250, up to 400 psi below 150 F
• Flow characteristic {Tools}: A AB: modified equal percentage; B AB: linear
• Power Consumption For Wire Sizing: 3.5 VA
• Control Type: Floating/3-point
• Protection category: IP54
• Degree Of Protection NEMA: NEMA 2
• Enclosure Type: UL Enclosure Type 2
