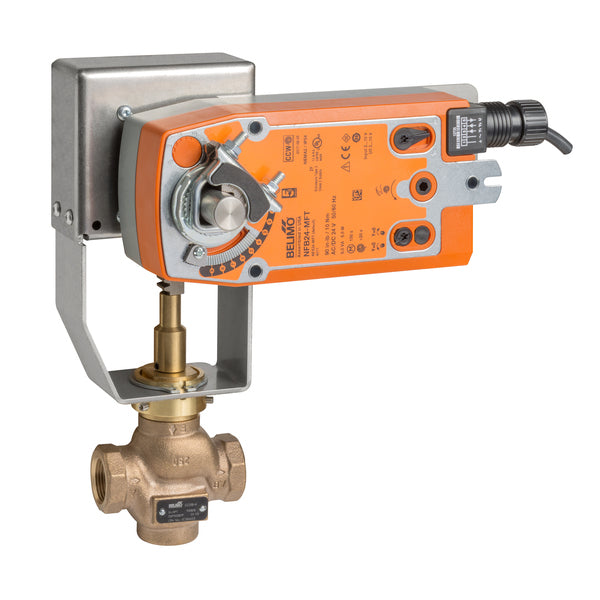

Belimo G250S-N+NFBUP-X1 Globe Valve 2 2 Way 40 Cv w/ Spring Return 24 -240V On/Off

Product Description

The Belimo G250S-N+NFBUP-X1 is a globe valve designed for on and off control in HVAC and process applications. This 2-way valve has a flow capacity of forty Cv and operates with a spring return actuator. It supports a voltage range of twenty-four to two hundred forty volts.

• Spring return actuator for reliable operation
• Handles chilled or hot water with up to sixty percent glycol
• Designed for both commercial and industrial settings

Product Highlights

The G250S-N+NFBUP-X1 valve features a stainless steel trim and is constructed for durability and long-term performance.

Product Information

Standard Information

• Brand: Belimo
• Part Number: G250S-N+NFBUP-X1

Technical Specifications

• Valve Size: 2 inches (50 mm)
• Flow Coefficient (Cv): 40
• Control Type: On/Off
• Angle of Rotation: 95 degrees
• Fluid: Chilled or hot water up to 60% glycol steam
• End Fitting: Internal thread
• Pressure Independent: No
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
• Voltage AC/DC: AC 24...240 V / DC 24...125 V
