Product Description

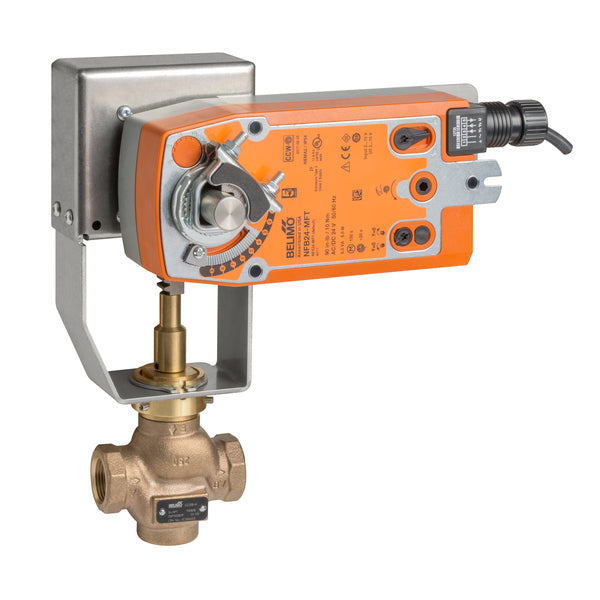

Belimo G250S-N+NFBUP-S-X1 is a globe valve designed for efficient flow control in HVAC systems. It features a two-way design and a control range of forty Cv, making it suitable for various applications. This valve operates on a voltage range of twenty-four to two hundred forty volts and incorporates a spring return mechanism for quick response.
- Two-way globe valve
- Forty Cv flow capacity
- Spring return actuator
Product Highlights
Belimo G250S-N+NFBUP-S-X1 provides reliable operation in chilled or hot water systems with up to sixty percent glycol. The internal thread end fitting allows for easy integration into existing systems.
Product Information
Standard Information
-
Manufacturer: Belimo
-
MPN: G250S-N+NFBUP-S-X1
Technical Specifications
-
Angle of Rotation: 95 degrees
-
ANSI Class: 250
-
Controllable Flow Range: Stem up - open A b AB
-
Cv: 40
-
End Fitting: Internal thread
-
Fluid: Chilled or hot water up to 60% glycol steam
-
Pattern: 2-way
-
Pressure Independent: NO
-
Trim: Stainless steel
-
Valve Size: 2 inches (50 mm)
-
Actuator Type: Spring return
-
Auxiliary Switches: 2 x SPDT
-
Control Type: On/Off
-
Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
-
Electrical Connection: Cable
-
Manual Override: 5 mm hex crank (3/16 Allen) supplied
-
Power Consumption (Holding): 2.5 W
-
Power Consumption (Running): 6 W
-
Running Time (Fail-safe): Less than 20 seconds
-
Running Time (Motor): 75 seconds / 90 degrees
-
Voltage AC/DC: AC 24...240 V / DC 24...125 V
