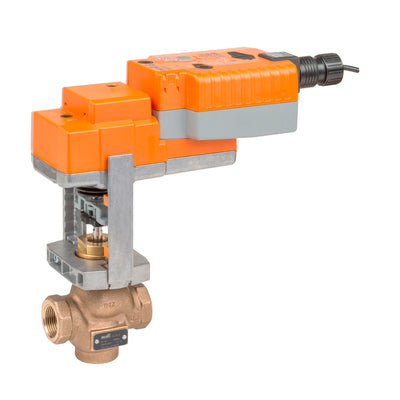

Belimo G250S-N+LVKX24-MFT | Globe Valve | 2 | 2 Way | 40 Cv | w/ Electronic Fail-Safe | 24V | MFT

Product Description

The Belimo G250S-N+LVKX24-MFT is a globe valve designed for air handling units and various heating or cooling systems. This valve features a two-way design and a controllable flow capacity of forty Cv. It operates on twenty-four volts and includes an electronic fail-safe function. Suitable applications for this valve include fan coil units, VAV box re-heat coils, and hydronic systems.

• Two-way configuration for versatile flow control.
• Electronic fail-safe for reliable operation.
• Compatible with various hydronic systems and applications.

Product Highlights

This globe valve is engineered for precise control in HVAC systems, ensuring effective temperature management across numerous environments.

Product Information

Standard Information

• Brand: Belimo
• MPN: G250S-N+LVKX24-MFT

Technical Specifications

• Valve Size: 2 [50]
• Cv: 40
• Fluid: Chilled or hot water up to 60% glycol steam
• End Fitting: Internal thread
• Pattern: 2-way
• ANSI Class: 250
• Pressure Independent: NO
• Trim: Stainless steel
• Actuator Type: Electrical fail-safe
• Voltage AC/DC: AC/DC 24 V
• Manual Override: 4 mm hex crank (shipped w/actuator)
• Degree of Protection: IP54 NEMA2 UL Enclosure Type2
• Running Time (Fail-safe): <35 s
• Running Time (Motor): 90 s
• Stroke: 0.75 [19 mm]
• Power Consumption (Holding): 1.5 W
• Power Consumption (Running): 2.5 W
• Force: 500 N [115 lbf]
