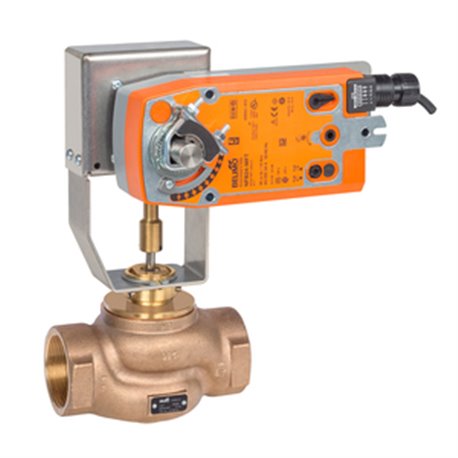

Belimo G250B-N+NFX24-MFT-X1 Globe Valve 2 2 Way 40 Cv w/ Spring Return 24V MFT

Product Description

The Belimo G250B-N+NFX24-MFT-X1 is a two-way threaded globe valve suitable for HVAC systems. It allows for two-position, proportional, and floating control of hot and chilled water and steam.

• Designed for fast opening and closing
• Suitable for applications with significant pressure drops
• Ideal for use in air handling units and fan coil units

Product Highlights

This valve is crafted for optimal performance in various HVAC applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: G250B-N+NFX24-MFT-X1

Technical Specifications

• Valve Size: 2 inches
• Cv: 40
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol steam
• Pressure Rating: ANSI Class 250
• Temperature Resistance: 20 to 280 degrees Fahrenheit
• Actuator Type: Spring return
• Control Type: MFT/Programmable
• Voltage AC/DC: 24V
• Power Consumption: 3W (Holding), 6.5W (Running)
• Running Time: Less than 20 seconds for fail-safe
