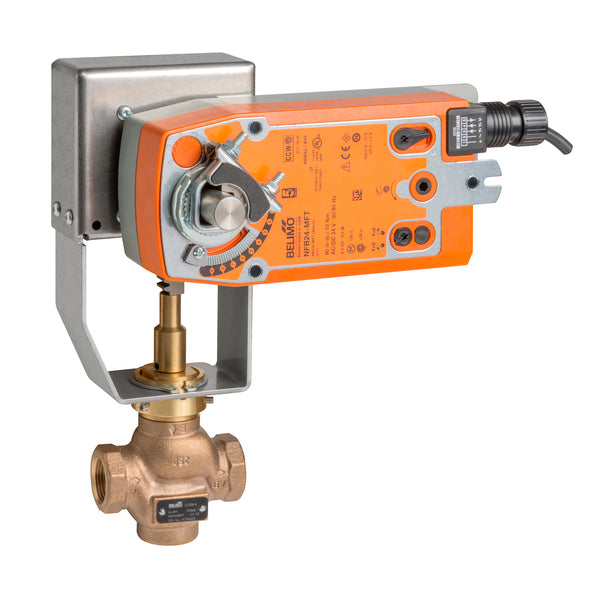

Belimo G250B-N+NFB24-SR-X1 Globe Valve Assembly 2 Way 2 in.

Product Description

The Belimo G250B-N+NFB24-SR-X1 is a globe valve assembly designed for efficient flow control in HVAC systems. This valve features a two-way configuration, ideal for modulating flow in various heating and cooling applications. It has a power input of twenty-four volts AC or DC and is capable of handling chilled or hot water, as well as steam.

• Spring return actuator provides reliable control.
• ANSI Class 250 ensures high performance and durability.
• 40 Cv flow coefficient for effective operation.

Product Highlights

This globe valve assembly is suitable for use in air handling units, fan coils, and various hydronic systems.

Product Information

Standard Information

• Brand: Belimo
• Part Number: G250B-N+NFB24-SR-X1

Technical Specifications

• Valve Size: 2 inches
• Flow Characteristic: Modified equal percentage
• Power Consumption: 3.5 W running, 2.5 W holding
• Operating Conditions: -22 F to 122 F
• Electrical Connections: 3 ft. 18 GA appliance cable
• Trim Material: Bronze
• End Fitting: Internal thread
• Control Type: DC 2-10 V
