Belimo G250B-N+LVKB24-MFT Globe Valve 2in 2 Way 40 Cv w/

Product Description

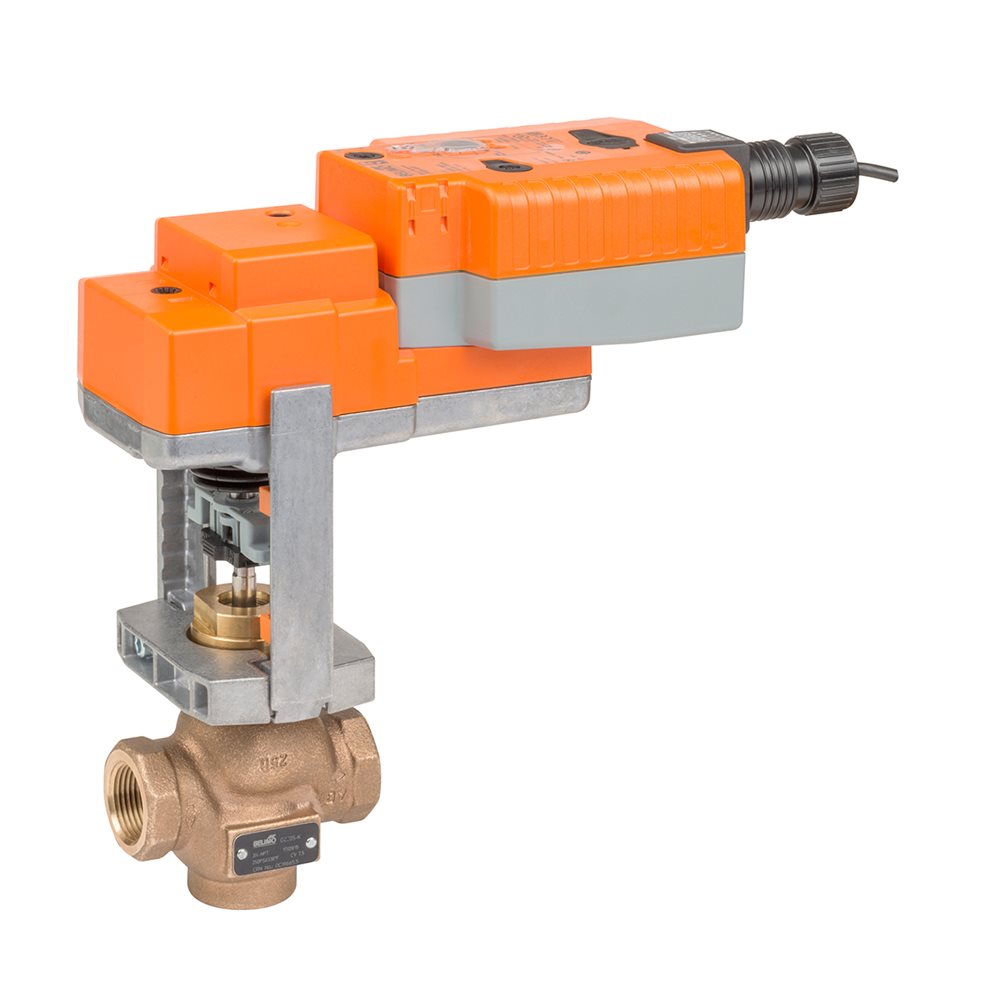

The BELIMO G250B-N+LVKB24-MFT is a globe valve with a 2-inch pipe size and a 40 Cv rating. This 2-way valve includes an electronic fail-safe and operates on 24V MFT. It is designed for proportional control of HVAC hot water, chilled water, or steam systems.

• 2-inch pipe size with 40 Cv rating
• Features an electronic fail-safe
• Operates on 24V MFT

Product Highlights

This globe valve is ideal for controlling unit ventilators and air handling units in HVAC heating and cooling systems.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: G250B-N+LVKB24-MFT
• Country of Origin: United States

Technical Specifications

• CV: 40
• Trim: Bronze
• Runtime: 90 Sec
• Actuator: LVKB24-MFT
• Feedback: 2-10vdc
• Fail-Safe: Elec Fail-Safe
• Pipe Size: 2 in
• Connection: NPT
• Valve Type: 2-Way
• Nema Rating: Nema 2
• Power Supply: Electric
• Valve Number: G250B-N
• Control Signal: 0-10vdc, 2-10vdc, Programmable
• Close Off Pressure: 250 PSI
• Cv Range: 17…47
• Pattern: 2-way
• Actuator Type: Electronic fail-safe
• Control type: MFT/Programmable
• Fluid: chilled or hot water, up to 60% glycol, steam
• ANSI Class: 250
• Voltage: AC/DC 24 V
• Body Pressure Rating: ANSI Class 250, up to 400 psi below 150°F
• Flow characteristic {Tools}: Modified equal percentage
• End Fitting: Internal thread
• Valve Size: 2 Inch
• Voltage AC/DC: AC/DC 24 V
• Power Consumption (Running): 2.5 W
• Power Consumption (Holding): 1.5 W
• Power Consumption For Wire Sizing: 6 VA
• Force: 500 N [115 lbf]
• Direction Of Motion Motor: selectable with switch
• Direction of Rotation (Fail-Safe): Reversible with switch
• Manual Override: 4 mm hex crank (shipped w/actuator)
• Stroke: 0.6" [15 mm] LV, 3/4" [20 mm] SV
• Running Time (Motor): 90 s
• Running Time (Fail-safe): <35 s
• Protection category: IP54
• Degree Of Protection NEMA: NEMA 2
• Enclosure Type: UL Enclosure Type 2
• Valve Pattern: 2-Way
• CV Rating: 40
• Auxillary Switch: None
• Supply Voltage (Nominal): 24 VAC
• Trim Material: Bronze
• Size: 2 in
• MPN: G250B-N+LVKB24-MFT
• Brand: BELIMO
