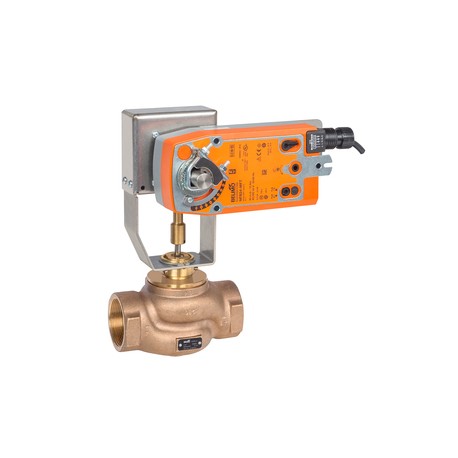

Belimo G240S-N+NFX24-MFT-X1 Globe Valve Assembly 2 Way 1-1/2 in.

Product Description

The Belimo G240S-N+NFX24-MFT-X1 is a globe valve assembly designed for HVAC applications. It features a two-way operation and an inlet size of one and a half inches. This valve is suitable for controlling water and low to high pressure steam. It has a modulating actuator with a spring return mechanism and operates at twenty-four volts AC.

• Greater force and flexibility for various applications
• ANSI Class VI leakage rating
• Compatible with chilled or hot water

Product Highlights

This valve is engineered with MFT technology, allowing for programmable control.

Product Information

Standard Information

• Brand: Belimo
• Part Number: G240S-N+NFX24-MFT-X1

Technical Specifications

• Cv: 28
• Angle of Rotation: 95 degrees
• End Fitting: Internal thread
• Fluid Type: Chilled or hot water, up to 60% glycol, steam
• Pressure Rating: 15-100 psi
• Electrical Connection: 18 GA appliance rated cable
• Power Consumption: 6.5 W running, 3 W holding
• Operating Conditions: -22 F to 122 F
