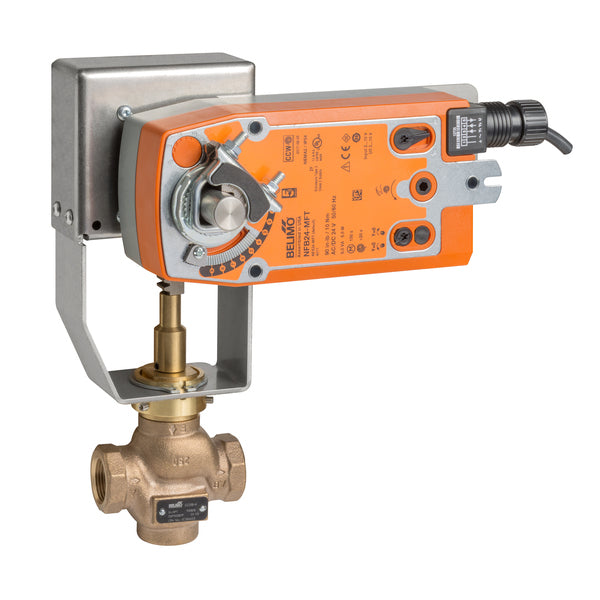

Belimo G240S-N+NFBUP-X1 Globe Valve 1.5 2 Way 28 Cv w/ Spring Return 24 -240V

Product Description

The Belimo G240S-N+NFBUP-X1 is a globe valve designed for effective flow control in HVAC systems. This valve operates with a spring return actuator and is suitable for both chilled and hot water applications, accommodating up to sixty percent glycol and steam. It features a two-way design with a Cv rating of twenty-eight for optimized flow management.

• Spring return actuator for reliable performance.
• Operates in a voltage range of twenty-four to two hundred forty volts.
• Supports internal thread connections for easy installation.

Product Highlights

This valve combines durability with efficient control, making it ideal for various heating and cooling systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: G240S-N+NFBUP-X1

Technical Specifications

• Valve Size: 1.5 (40)
• Pattern: 2-way
• Angle of Rotation: 95
• ANSI Class: 250
• Trim: Stainless steel
• Fluid: Chilled or hot water up to 60% glycol steam
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 6 W
• Voltage AC/DC: AC 24...240 V / DC 24...125 V
