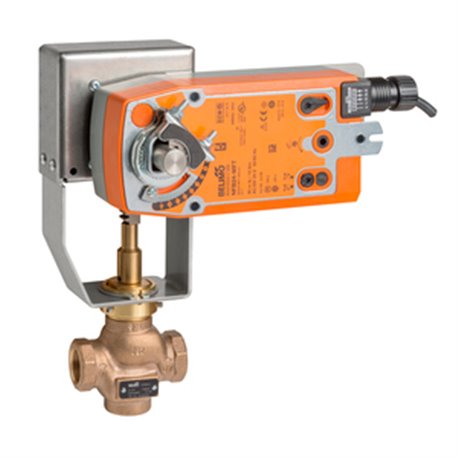

Belimo G240S-N+NFB24-SR-X1 Globe Valve Assembly 2 Way 1-1/2 in. Replacement MPN

Product Description

The Belimo G240S-N+NFB24-SR-X1 is a globe valve assembly designed for effective fluid control. This model has a 1.5-inch size and features a two-way design for versatile applications. It supports a flow coefficient of 28 Cv, ideal for chilled or hot water and low to high pressure steam control. The valve operates with a direct-coupled actuator, modulating capabilities, and operates efficiently at 24 VAC or DC.

• Handles pressures from 15-100 psi
• Includes a stainless steel seat and stem for durability
• Features a new soft seat design for ANSI Class VI leakage rating

Product Highlights

This globe valve is perfect for HVAC systems needing reliable performance. It integrates easily with existing systems and provides precise control over fluid flow.

Product Information

Standard Information

• Brand: Belimo
• Part Number: G240S-N+NFB24-SR-X1

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Chilled or hot water, up to 60% glycol, steam
• Power Consumption: 3.5 W running, 2.5 W holding
• Flow Characteristic: Modified equal percentage
• Operating Conditions: -22 F to 122 F
• Electrical Connections: 3 ft. 18 GA appliance cable with 1/2 in. conduit connector
• Actuator Type: Spring return
• Voltage: AC/DC 24 V
