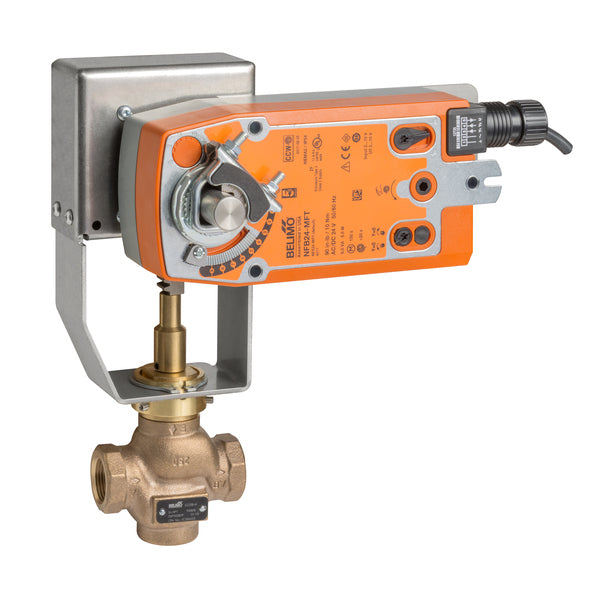

Belimo G240B-N+NFBUP-X1 Globe Valve Assembly, 2 Way, 1-1/2 in.

Product Description

The Belimo G240B-N+NFBUP-X1 is a reliable globe valve assembly designed for use in HVAC systems. This valve operates with a power range of twenty-four to two hundred forty volts, making it suitable for various control applications. It is particularly effective for heating and cooling coils in air handling units and fan coil units.

• Direct coupled design with spring return feature
• Torque rating of ninety inch-pounds
• Constructed with a bronze body and seat for durability

Product Highlights

This product is ideal for hydronic systems with variable flow and is capable of handling chilled or hot water with up to sixty percent glycol.

Product Information

Standard Information

• Brand: Belimo
• Minimum Order Quantity: 1

Technical Specifications

• Valve Type: 2-way
• Size: 1.5 inches
• Flow Coefficient (Cv): 28
• Operating Voltage: 24 to 240 VAC
• Ambient Operating Conditions: -22°F to 122°F
• Power Consumption: 6 W running, 2.5 W holding
• Electrical Connections: 3 ft. 18 GA appliance cable with 1/2 inch conduit connector
• Degree of Protection: NEMA 2, IP54
