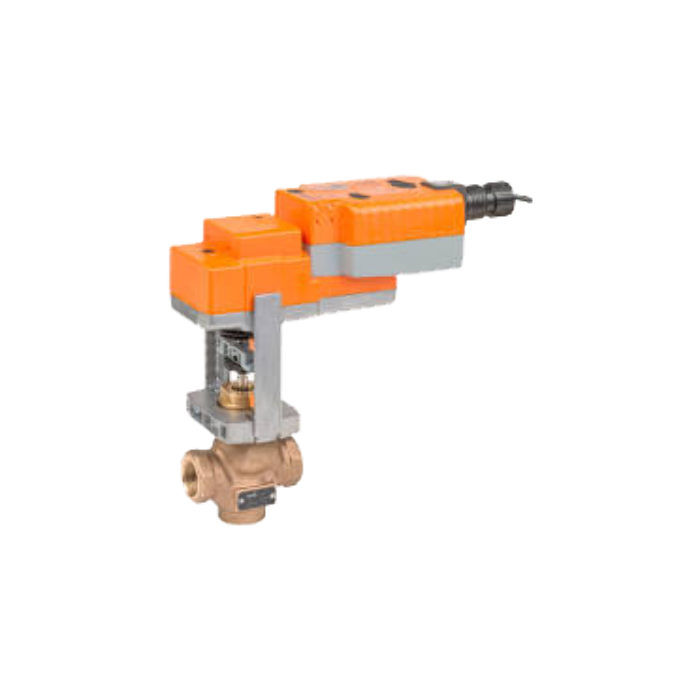

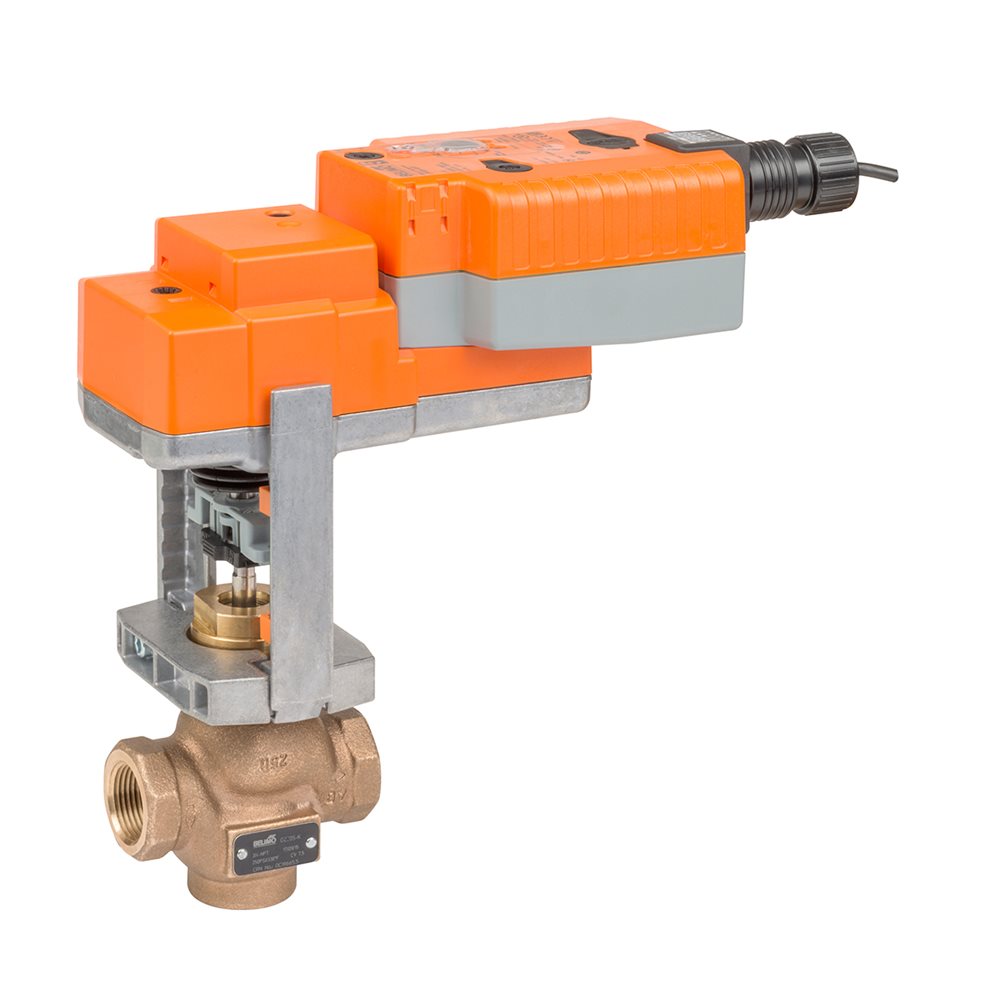

Belimo G240B-N+LVKB24-MFT Globe Valve 2 Way, 1-1/2 in.

Product Description

The BELIMO G240B-N+LVKB24-MFT is a globe valve assembly designed for 2-way flow with a 1-1/2 inch connection. It features a bronze body and seat, stainless steel stem, and a direct coupled actuator. This valve is suitable for controlling HVAC hot water, chilled water, or steam.

• Greater Force And Flexibility
• For Use With Water And Low To High Pressure Steam Control, 15-100 psi Inlet
• New Soft Seat Design Providing ANSI Class VI Leakage Rating

Product Highlights

This globe valve assembly offers modulating, fail-safe operation with multi-function technology and a 24 VAC power supply.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: G240B-N+LVKB24-MFT
• Country of Origin: United States

Technical Specifications

• Housing: NEMA 2, IP54, UL Enclosure Type 2
• Service: Chilled Or Hot Water, Up To 60% Glycol, Steam
• Power Consumption: 2.5 W Running, 1.5 W Holding
• Flow Characteristic: Modified Equal Percentage
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connections: 3 ft. 18 GA Plenum Rated Cable With 1/2 in. Conduit Connector Protected NEMA 2
• ANSI Class: 250
• Controllable Flow Range: Stem up - open A b AB
• Cv: 28
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol steam
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Bronze
• Valve Size: 1.5" [40]
• Actuator Type: Fail-Safe
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
• Electrical Connection: cable
• Force: 500 N [115 lbf]
• Manual Override: 4 mm hex crank (shipped w/actuator)
• Power Consumption (Holding): 1.5 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): <35 s
• Running Time (Motor): 90 s /
• Stroke: 0.75" [19 mm]
• Voltage AC/DC: AC/DC 24 V
• Runtime: 90 Sec
• Actuator: LVKB24-MFT
• Assembly: Assembly
• Feedback: 2-10vdc
• Fail-Safe: Elec Fail-Safe
• Pipe Size: 1.5 in
• Connection: NPT
• Valve Type: 2-Way
• Nema Rating: Nema 2
• Power Supply: Electric
• Valve Number: G240B-N
• Control Signal: 0-10vdc, 2-10vdc, Programmable
• Close Off Pressure: 250 PSI
• Electric Actuator: Electric
• Supply Voltage (Nominal): 24 VAC
• Trim Material: Bronze
• Connections: NPT female ends
• Maximum Pressure Rating: 250 psi
• Media Compatibility: Chilled or Hot Water, 60% Glycol, Steam (G2, G2S)
• Pipe Size Range: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
• Minimum Closeoff: 85 psi
• Maximum Differential Pressure: Water 35 psi (241 kPa); Steam 20 psi (138 kPa) to 35 psi (241 kPa)
• Maximum Inlet Pressure: Steam 35 psi (241 kPa)
• Cv Range: 17 47
• Control type: MFT/Programmable
• Voltage: AC/DC 24 V
• Body Pressure Rating: ANSI Class 250, up to 400 psi below 150 F
• Power Consumption For Wire Sizing: 6 VA
• Direction Of Motion Motor: selectable with switch
• Direction of Rotation (Fail-Safe): Reversible with switch
• Protection category: IP54
• Degree Of Protection NEMA: NEMA 2
• Enclosure Type: UL Enclosure Type 2
• Valve Pattern: 2-Way
• CV Rating: 28
• Auxillary Switch: None
