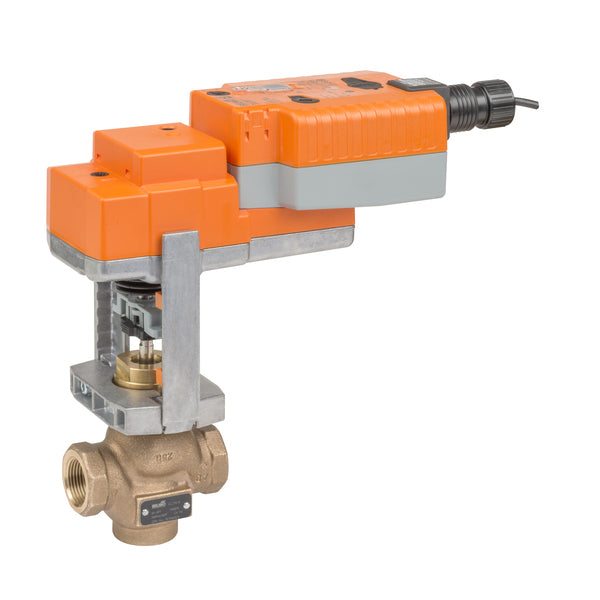

Belimo G232S-M+LVKB24-SR Globe Valve Assembly 2 Way 1-1/4 in.

Product Description

The Belimo G232S-M+LVKB24-SR is a globe valve assembly designed for two-way flow control. It is engineered for functionality in HVAC systems, accommodating water and low to high pressure steam. This valve has a size of one and one-quarter inches and operates with an actuator force of 112 lbf.

• Direct coupled with fail-safe operation
• Modulating capability with control ranges of 2 to 10 VDC and 4 to 20 mA
• Constructed from a durable bronze body with stainless steel trim

Product Highlights

The G232S-M+LVKB24-SR valve ensures efficient flow management in various heating and cooling systems. It is suitable for chilled or hot water and operates at inlet pressures of 15 to 100 psi. The valve features a soft seat design which meets the ANSI Class VI leakage standards.

Product Information

Standard Information

• Brand: Belimo
• Part Number: G232S-M+LVKB24-SR

Technical Specifications

• Housing: NEMA 2, IP54, UL Enclosure Type 2
• Service: Chilled or hot water, up to 60% glycol, steam
• Power Consumption: 2.5 W running, 1.5 W holding
• Flow Characteristic: Modified equal percentage
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Electrical Connections: 3 ft. 18 GA plenum rated cable with 1/2 in. conduit connector
• Force: 500 N (115 lbf)
• Stroke: 0.75 inches (19 mm)
