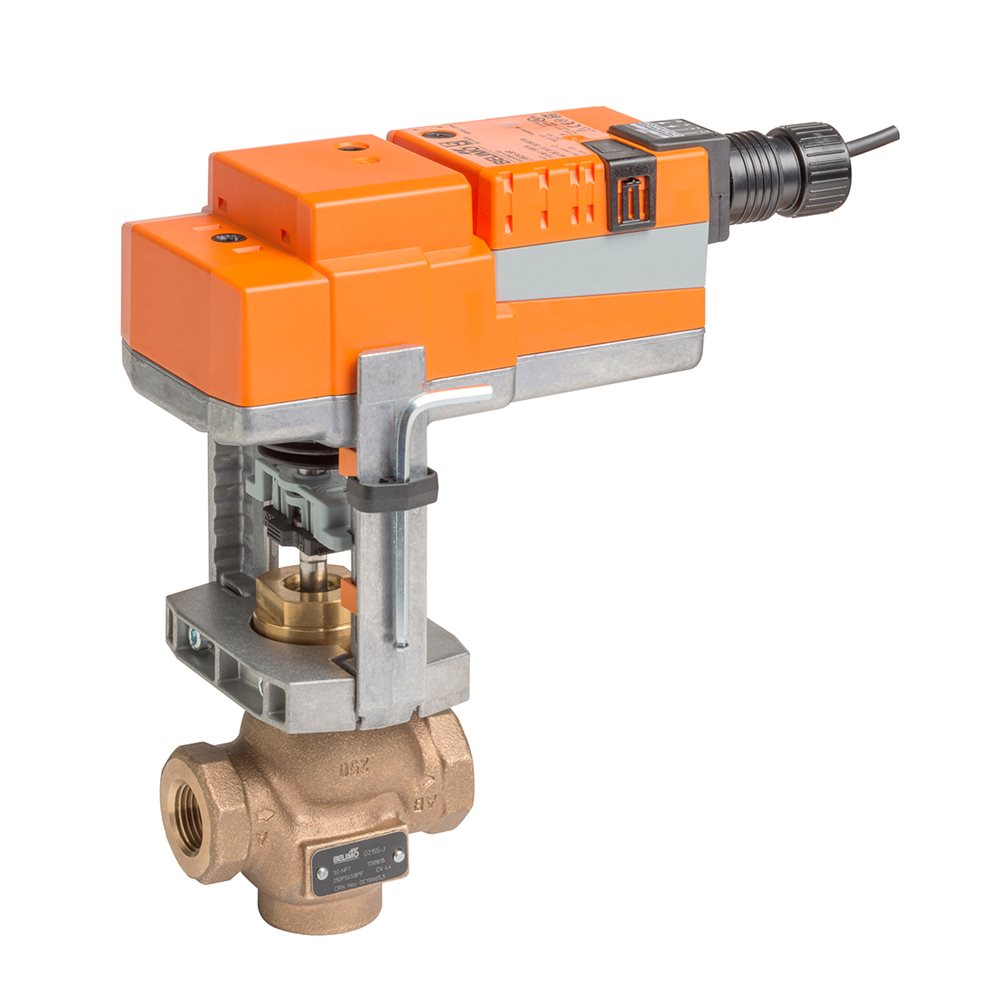

Belimo G232S-M+LVB24-3 Globe Valve 20 Cv 1.25 inches

Product Description

The BELIMO G232S-M+LVB24-3 is a globe valve with a 1.25" size and a 20 Cv flow coefficient. It features a non-spring return and operates on 24V with floating control. This valve is designed for two-position, floating, or proportional control of HVAC systems using hot water, chilled water, or steam.

• Valve size: 1.25"
• Flow coefficient (Cv): 20
• Control type: Floating

Product Highlights

The BELIMO G232S-M+LVB24-3 globe valve is ideal for HVAC heating and cooling systems.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: G232S-M+LVB24-3
• Country of Origin: United States

Technical Specifications

• ANSI Class: 250
• Cv: 20
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol steam
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Stainless steel
• Valve Size: 1.25" [32]
• Actuator Type: Non fail-safe
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
• Electrical Connection: cable
• Force: 500 N [115 Lbf]
• Manual Override: 4 mm hex crank (shipped w/actuator)
• Power Consumption (Holding): 0.5 W
• Power Consumption (Running): 1 W
• Running Time (Motor): 90 S /
• Stroke: 0.75" [19 Mm]
• Voltage AC/DC: AC/DC 24 V
• Runtime: 90 Sec
• Actuator: LVB24-3
• Fail-Safe: Non-Spring Return
• Pipe Size: 1.25 in
• Connection: NPT
• Valve Type: 2-Way
• Nema Rating: Nema 2
• Power Supply: Electric
• Valve Number: G232S-M
• Control Signal: On/Off, Floating
• Close Off Pressure: 250 PSI
• Body Pressure Rating: ANSI Class 250, up to 400 psi below 150 F
• Flow characteristic {Tools}: Modified equal percentage
• Power Consumption For Wire Sizing: 1 VA
• Control Type: Floating/3-point
• Direction Of Motion Motor: selectable with switch 0/1
• Running Time range (Motor): 90 or 150 s
• Protection category: IP54
• Degree Of Protection NEMA: NEMA 2
• Enclosure Type: UL Enclosure Type 2
• Valve Pattern: 2-Way
• CV Rating: 20
• Voltage: 24V
• Auxillary Switch: None
• Supply Voltage (Nominal): 24 VAC
• Trim Material: Stainless Steel
• Size: 1 1/4 Inch
• Actuator Manual Override: All models except LF
• Actuator Electrical Connection: 3' (1mm) cable with 1/2" conduit fitting standard
• Connections: NPT female ends
• Flow Characteristic: G2: Equal percentage; G2S, G3, G3D: Linear
• Maximum Pressure Rating: 250 psi
• Media Compatibility: Chilled or Hot Water, 60% Glycol, Steam (G2, G2S)
• Pipe Size Range: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
• Minimum Closeoff: 85 psi
• Maximum Differential Pressure: Water 35 psi (241 kPa); Steam 20 psi (138 kPa) to 35 psi (241 kPa)
• Maximum Inlet Pressure: Steam 35 psi (241 kPa)
• Actuator type: Electric
• Category: Electric Actuator Valve Assemblies
• Product category: Control Valves & Actuators
• Product subcategory: Non-Spring Return Valve Assemblies
• Series: Belimo
• Short desc: Globe Valve, 1-1/4 Inch, 2-Way, 20Cv, 24V, Non Fail-Safe
• Sku: BEL-G232SMLVB243
• Supplier part number: G232S-M+LVB24-3
• Valve trim: Chrome Plated Brass
• Item Number: G232S-M+LVB24-3
• Brand: Belimo
• Control Input: Floating
• Control Valves Type: Globe Valve
• Cv / GPM: 20 Cv
• Spring Return: Non-Spring Return
• Enclosure nema rating: NEMA 2
• Fail safe: Non Fail Safe
