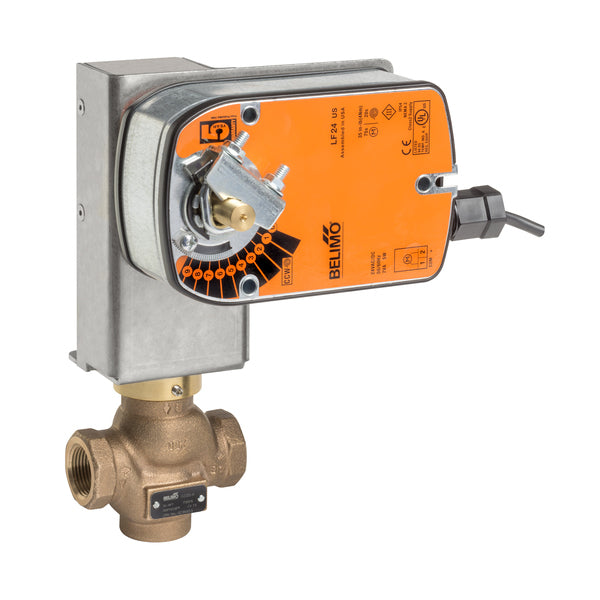

Belimo G232S-M+LF24-S Globe Valve 1.25 2 Way 20 Cv w/ Spring Return 24V On/Off

Product Description

The Belimo G232S-M+LF24-S is a globe valve designed for efficient flow control in HVAC systems. This valve features a size of one point twenty-five inches, offers a two-way flow pattern, and has a flow coefficient (Cv) of twenty. It operates on a twenty-four-volt system with a spring return actuator, making it suitable for on/off control applications.

• Size: 1.25 inches
• Flow Coefficient: 20 Cv
• Spring return actuator for efficient operation

Product Highlights

The G232S-M+LF24-S valve delivers reliable performance for controlling chilled or hot water and is compatible with up to sixty percent glycol. Its robust stainless steel trim ensures durability, suitable for various heating and cooling applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: G232S-M+LF24-S

Technical Specifications

• Valve Size: 1.25 inches
• Angle of Rotation: 90 degrees
• ANSI Class: 250
• Controllable Flow Range: Stem up - open A b AB
• Cv: 20
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol steam
• Pattern: 2-way
• Pressure Independent: No
• Trim: Stainless steel
• Actuator Type: Spring return
• Auxiliary Switches: 1 x SPDT
• Degree of Protection: IP54 NEMA 2
• Electrical Connection: Cable
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 75 seconds / 90 degrees
• Voltage AC/DC: AC/DC 24 V
