Belimo G232B-M+LF24-SR US Globe Valve Assembly 2 Way 1 1/4 in

Product Description

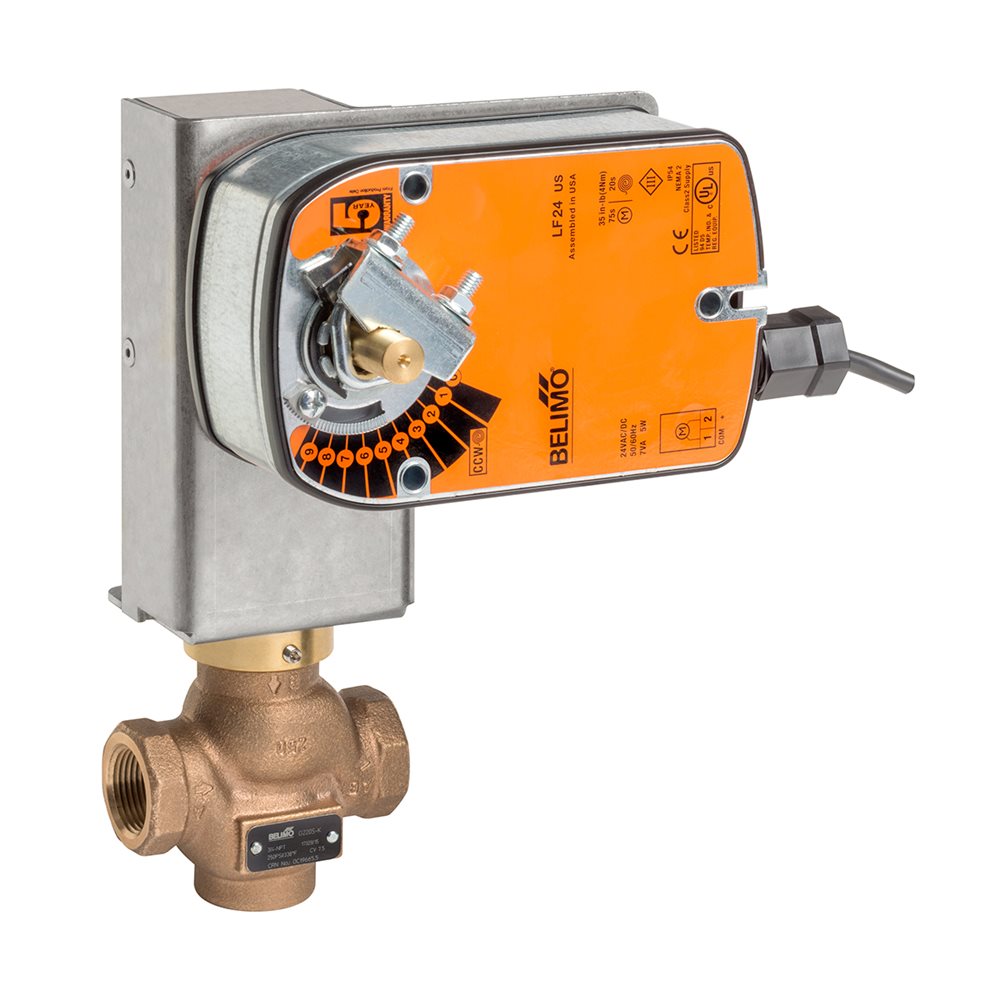

The BELIMO G232B-M+LF24-SR US is a globe valve assembly. It is a 2-way, 1 1/4 inch valve with NPT connection, 20 Cv, bronze body and seat, and stainless steel stem. It features a direct-coupled actuator, 35 in-lb, modulating, spring return, and 24 VAC, designed for 2 to 10 VDC or 4 to 20 mA control signal.

• Greater Force And Flexibility
• For Use With Water And Low To High Pressure Steam Control, 15-100 psi Inlet
• New Soft Seat Design Providing ANSI Class VI Leakage Rating

Product Highlights

This globe valve assembly is designed for HVAC systems, controlling hot water, chilled water, or steam with precision and reliability.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: G232B-M+LF24-SR US
• Country of Origin: United States

Technical Specifications

• Cv: 20
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol steam
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Bronze
• Valve Size: 1.25" [32]
• Actuator Type: Fail-Safe
• Degree of Protection: IP54 NEMA 2
• Electrical Connection: cable
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): <25 s
• Running Time (Motor): 150 s / 90B0
• Voltage AC/DC: AC/DC 24 V
• ANSI Class: 250
• Controllable Flow Range: Stem up - open A b AB
• Connection: NPT
• Runtime: 150 Sec
• Actuator: LF24-SR US
• Assembly: Assembly
• Feedback: 2-10vdc
• Fail-Safe: Spring Return
• Pipe Size: 1.25 in
• Valve Type: 2-Way
• Nema Rating: Nema 2
• Power Supply: Electric
• Valve Number: G232B-M
• Close Off Pressure: 141 PSI
• Body Pressure Rating: ANSI Class 250, up to 400 psi below 150 F
• Flow characteristic {Tools}: Modified equal percentage
• Power Consumption For Wire Sizing: 5 VA
• Torque: 35 in-lb [4 Nm]
• Control Type: DC 2...10 V
• Direction Of Motion Motor: selectable with switch 0/1
• Direction of Rotation (Fail-Safe): Reversible with cw/ccw mounting
• Angle of Rotation: 95
• Protection category: IP42
• Degree Of Protection NEMA: NEMA 2
• Enclosure Type: UL Enclosure Type 2
• Ambient Temeprature: -22...122 F [-30...50 C]
• Valve Pattern: 2-Way
• CV Rating: 20
• Voltage: 24VAC/DC
• Control Signal: 2-10VDC
• Auxillary Switch: None
• Size: 1-1/4 in
• Actuator Manual Override: All models except LF
• Actuator Electrical Connection: 3' (1mm) cable with 1/2" conduit fitting standard
• Connections: NPT female ends
• Flow Characteristic: G2: Equal percentage; G2S, G3, G3D: Linear
• Maximum Pressure Rating: 250 psi
• Media Compatibility: Chilled or Hot Water, 60% Glycol, Steam (G2, G2S)
• Pipe Size Range: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
• Minimum Closeoff: 85 psi
• Maximum Differential Pressure: Water 35 psi (241 kPa); Steam 20 psi (138 kPa) to 35 psi (241 kPa)
• Maximum Inlet Pressure: Steam 35 psi (241 kPa)
