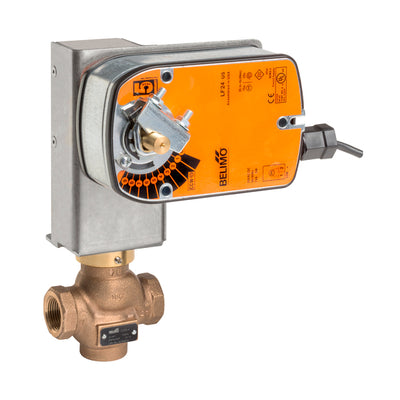

Belimo G232B-M+LF24-SR Globe Valve 1.25 2 Way 20 Cv w/ Spring Return 24V

Product Description

The Belimo G232B-M+LF24-SR is a globe valve designed for modulating control of HVAC dampers. This valve features a spring return actuator and operates on twenty-four volts. It is suitable for managing both chilled and hot water systems, including those with up to sixty percent glycol.

• Fail-safe modulating control for HVAC systems
• Spring return actuator for reliable operation
• Suitable for multiple fluid types including chilled and hot water

Product Highlights

This valve is essential for efficient HVAC system performance, allowing precise flow control based on system requirements.

Product Information

Standard Information

• Brand: Belimo
• MPN: G232B-M+LF24-SR

Technical Specifications

• Valve Size: 1.25 [32]
• Pattern: 2-way
• Cv: 20
• Angle of Rotation: 90 degrees
• Fluid: Chilled or hot water up to 60% glycol, steam
• End Fitting: Internal thread
• Trim: Bronze
• Actuator Type: Spring return
• Voltage: AC/DC 24 V
• Degree of Protection: IP54 NEMA2
• Running Time (Motor): 150 seconds for 90 degrees
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Pressure Independent: NO
