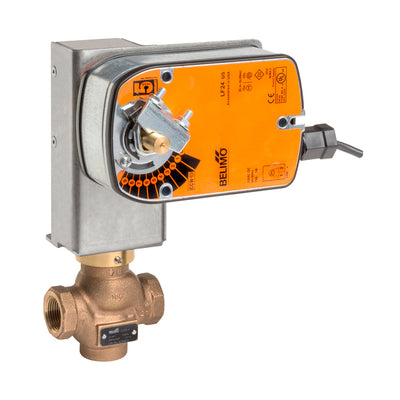

Belimo G232B-M+LF24-MFT-S Globe Valve 1.25 2 Way 20 Cv w/ Spring Return 24V

Product Description

The Belimo G232B-M+LF24-MFT-S is a globe valve designed to control water flow in HVAC systems. This valve has a nominal size of one point two five inches and operates as a two-way valve. It features a twenty Cv capacity with a spring return actuator, making it suitable for various applications in chilled or hot water systems. It operates at a voltage of twenty-four volts.

• Valve size: 1.25 inches
• Cv rating: 20
• Spring return actuator

Product Highlights

This globe valve is efficient in regulating fluid flow in HVAC applications, ensuring optimal performance and reliability.

Product Information

Standard Information

• Brand: Belimo
• MPN: G232B-M+LF24-MFT-S

Technical Specifications

• Angle of Rotation: 90 degrees
• ANSI Class: 250
• Controllable Flow Range: Stem up - open A b AB
• Cv: 20
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol steam
• Pattern: 2-way
• Pressure Independent: No
• Trim: Bronze
• Valve Size: 1.25 [32]
• Actuator Type: Spring return
• Auxiliary Switches: 1 x SPDT
• Degree of Protection: IP54 NEMA 2
• Electrical Connection: cable
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): < 25 seconds
• Running Time (Motor): 150 seconds / 90 degrees
• Voltage AC/DC: AC/DC 24 V
