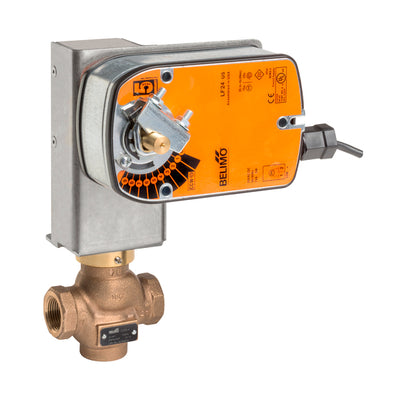

Belimo G225S-L+LF24 Globe Valve 1 2 Way 14 Cv w/ Spring Return 24V On/Off

Product Description

The Belimo G225S-L+LF24 is a globe valve designed for efficient control in heating and cooling systems. This two-way valve features a maximum Cv rating of fourteen and operates using a twenty-four-volt power source with spring return functionality.

• Used in air handling units and fan coil applications
• Suitable for hydronic systems with variable flow
• Can handle chilled or hot water and steam

Product Highlights

This valve is essential for maintaining optimal temperature control in various HVAC applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: G225S-L+LF24

Technical Specifications

• Angle of Rotation: 90 degrees
• ANSI Class: 250
• Controllable Flow Range: Stem up - open A b AB
• Cv: 14
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol steam
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Stainless steel
• Valve Size: 1 inch (25 mm)
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA 2
• Electrical Connection: Cable
• Power Consumption (Holding): 2.5 watts
• Power Consumption (Running): 5 watts
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 75 seconds at 90 degrees
• Voltage AC/DC: AC/DC 24 volts
