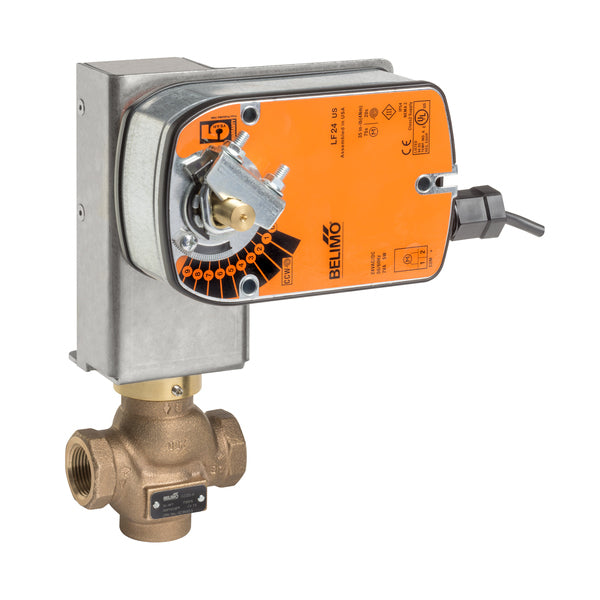

Belimo G225S-L+LF120 Globe Valve 1 2 Way 14 Cv with Spring Return 120V On/Off

Product Description

The Belimo G225S-L+LF120 is a globe valve designed for On/Off control in HVAC systems. This valve features fail-safe control suitable for dampers and is compatible with 120V applications. It is crucial to size the actuator according to the specifications set by the damper manufacturer. The actuator connects to the damper shaft measuring from three-eighths of an inch to one-half inch diameter using its universal clamp.

• Fits damper shafts from three-eighths to one-half inches
• Spring return actuator for reliable operation
• Constructed for chilled or hot water applications

Product Highlights

The globe valve is utilized in HVAC systems for efficient control of fluid flow and is essential for maintaining desired temperatures.

Product Information

Standard Information

• Brand: Belimo
• MPN: G225S-L+LF120

Technical Specifications

• Angle of Rotation: 90 degrees
• ANSI Class: 250
• Controllable Flow Range: Stem up - open A b AB
• Cv: 14
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol steam
• Pattern: 2-way
• Pressure Independent: No
• Trim: Stainless steel
• Valve Size: 1 inch [25 mm]
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA 2
• Electrical Connection: Cable
• Power Consumption (Holding): 3.5 W
• Power Consumption (Running): 5.5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 75 seconds at 90 degrees
• Voltage AC/DC: AC 120 V
