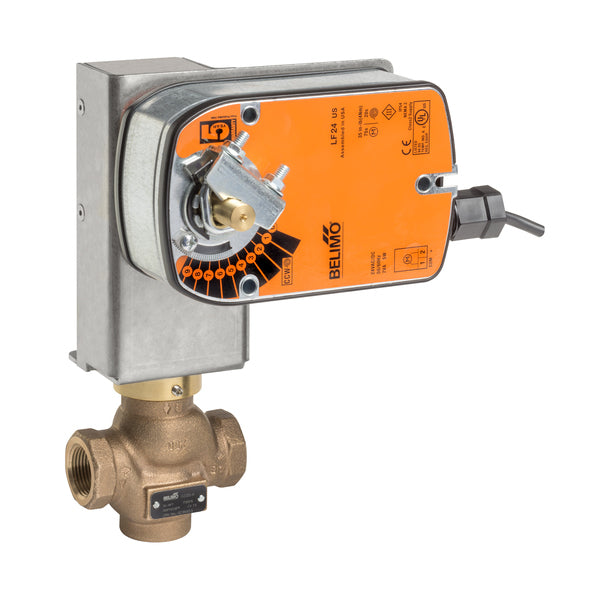

Belimo G225B-L+LF24-S | Globe Valve | 1 | 2 Way | 14 Cv | w/ Spring Return | 24V | On/Off | SW

Product Description

The Belimo G225B-L+LF24-S is a globe valve designed for efficient flow control in HVAC applications. This valve features a two-way design with a Cv rating of 14, allowing for reliable performance in chilled or hot water systems. The spring return actuator operates at 24V for simple on/off control.

• 1 inch valve size
• Spring return actuator with IP54 protection
• Compatible with internal thread fittings

Product Highlights

This globe valve is versatile and suitable for variable flow applications. The durable bronze trim ensures longevity, while the actuator's low power consumption makes it energy efficient.

Product Information

Standard Information

• Brand: Belimo
• MPN: G225B-L+LF24-S

Technical Specifications

• Angle of Rotation: 90 degrees
• ANSI Class: 250
• Controllable Flow Range: Stem up - open A b AB
• Cv: 14
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol steam
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Bronze
• Valve Size: 1 [25]
• Actuator Type: Spring return
• Auxiliary Switches: 1 x SPDT
• Degree of Protection: IP54 NEMA 2
• Electrical Connection: Cable
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 5 W
• Running Time (Fail-safe): <25 seconds
• Running Time (Motor): 75 seconds / 90 degrees
• Voltage AC/DC: AC/DC 24 V
