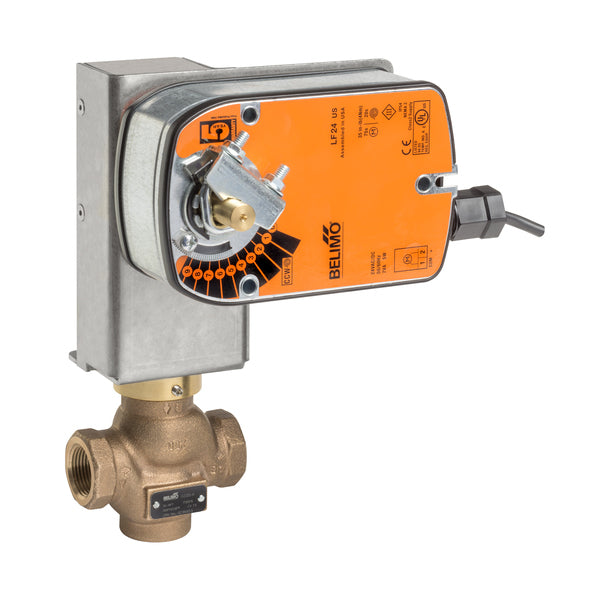

Belimo G225B-L+LF24-MFT Globe Valve 1 2 Way 14 Cv w Spring Return 24V MFT

Product Description

The Belimo G225B-L+LF24-MFT is a globe valve designed for use in air handling units. This valve is utilized in heating and cooling coils and offers essential control in various HVAC applications. Its typical uses include fan coil units, unit ventilators, VAV box re-heat coils, and bypass loops. It operates effectively in hydronic systems with variable flow. Common features include a spring return actuator and compatibility with chilled or hot water systems up to sixty percent glycol and steam. The valve is built with bronze trim, suitable for a range of applications depending on the actuator and close-off combinations.

• 1 inch valve size
• 14 Cv flow coefficient
• Rated for 24V operation

Product Highlights

This globe valve is engineered for reliable performance in HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: G225B-L+LF24-MFT

Technical Specifications

• Angle of Rotation: 90 degrees
• ANSI Class: 250
• Controllable Flow Range: Stem up - open A b AB
• Cv: 14
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol, steam
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Bronze
• Valve Size: 1 inch [25 mm]
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA 2
• Electrical Connection: Cable
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 150 seconds / 90 degrees
• Voltage AC/DC: 24 V AC/DC
