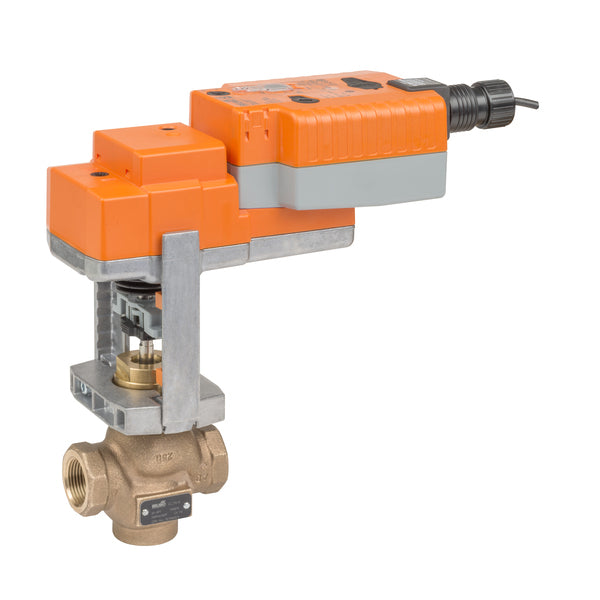

Belimo G225B-K+LVKX24-MFT Globe Valve 1 2 Way 10 Cv w/ Electronic Fail-Safe 24V MFT

Product Description

The Belimo G225B-K+LVKX24-MFT is a globe valve designed for varied applications in HVAC systems. It features a 2-way configuration with a flow coefficient (Cv) of ten. This valve operates with an electronic fail-safe mechanism and is compatible with a variety of systems, including heating and cooling coils. The unit operates at a voltage of twenty-four volts.

• 2-way valve with Cv of ten
• Electronic fail-safe actuator
• Suitable for hydronic systems and steam applications

Product Highlights

This valve is efficient for modulating flows with minimal maintenance. It is suitable for heating and cooling applications, providing reliability in temperature control.

Product Information

Standard Information

• Brand: Belimo
• MPN: G225B-K+LVKX24-MFT

Technical Specifications

• Valve Size: 1 [25]
• Flow Coefficient (Cv): 10
• End Fitting: Internal thread
• Fluid Type: Chilled or hot water up to 60% glycol steam
• Operating Voltage: 24V AC/DC
• Actuator Type: Electrical fail-safe
• Degree of Protection: IP54 NEMA2 UL type 2
• Power Consumption (Holding): 1.5 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): <35 s
• Running Time (Motor): 90 s
