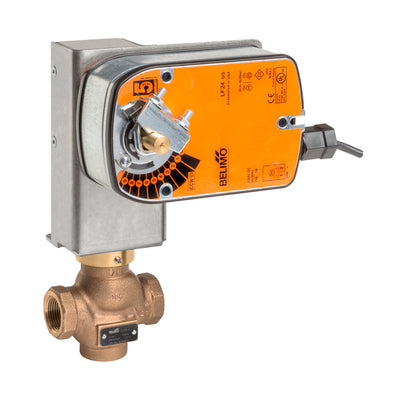

Belimo G225B-K+LF24-MFT Globe Valve 1 2 Way 10 Cv w/ Spring Return 24V MFT

Product Description

The Belimo G225B-K+LF24-MFT is a globe valve designed for effective modulating control of dampers in HVAC applications. It operates with a spring return actuator and is suitable for both chilled and hot water systems containing up to sixty percent glycol. The actuator sizing must comply with the specifications provided by the damper manufacturer. This valve ensures a reliable feedback signal for position indication, enhancing system performance and monitoring.

• Spring return actuator for fail-safe operation
• Compatible with various HVAC setups
• Provides position feedback for monitoring

Product Highlights

This valve allows for smooth control of fluid flow, contributing to improved energy efficiency.

Product Information

Standard Information

• Valve Type: Globe Valve
• Power Supply: 24V AC/DC

Technical Specifications

• Angle of Rotation: Ninety degrees
• ANSI Class: 250
• Controllable Flow Range: Stem up - open A b AB
• Cv: Ten
• End Fitting: Internal thread
• Fluid Compatibility: Chilled or hot water with up to sixty percent glycol, steam
• Pattern: Two-way
• Pressure Independent: No
• Trim Material: Bronze
• Valve Size: One inch [twenty-five]
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA 2
• Electrical Connection: Cable
• Power Consumption (Holding): One watt
• Power Consumption (Running): Two point five watts
• Running Time (Fail-safe): Less than twenty-five seconds
• Running Time (Motor): One hundred fifty seconds per ninety degrees
