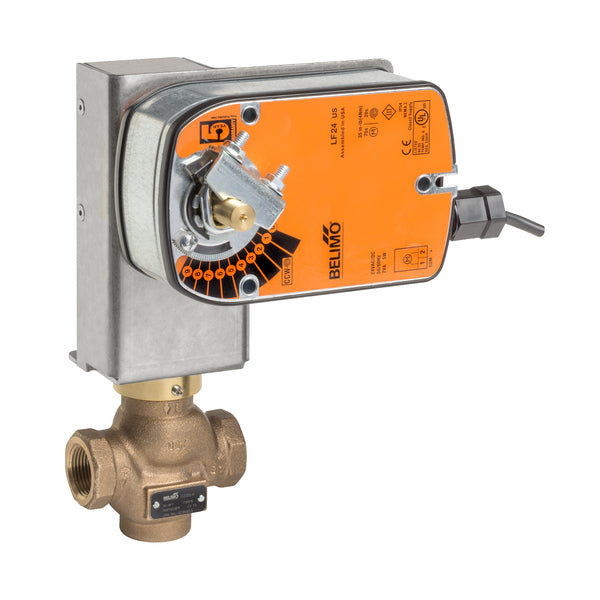

Belimo G225B-K+LF24-3 Globe Valve 1 2 Way 10 Cv w/ Spring Return 24V

Product Description

The Belimo G225B-K+LF24-3 is a globe valve designed for efficient control of fluid flow. This valve operates with a 2-way design and has a capacity of 10 flow coefficients (Cv). It utilizes a spring return actuator and is rated for a voltage of 24V. This product is suitable for chilled or hot water applications, as well as steam, making it versatile for many setups.

• 2-way valve with a one-inch size
• Spring return actuator for reliable operation
• Compatible with chilled or hot water applications

Product Highlights

The G225B-K+LF24-3 is ideal for HVAC systems where precise control over airflow and temperature is required. Its bronze trim ensures durability, and its design allows for effective integration into various piping systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: G225B-K+LF24-3

Technical Specifications

• Valve Size: 1 inch
• Pattern: 2-way
• Cv: 10
• Angle of Rotation: 90 degrees
• ANSI Class: 250
• End Fitting: Internal thread
• Fluid Compatibility: Chilled or hot water up to 60% glycol steam
• Actuator Type: Spring return
• Voltage: AC/DC 24V
• Degree of Protection: IP54 NEMA 2
• Power Consumption (Running): 2.5 W
• Power Consumption (Holding): 1 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 150 seconds for 90 degrees
