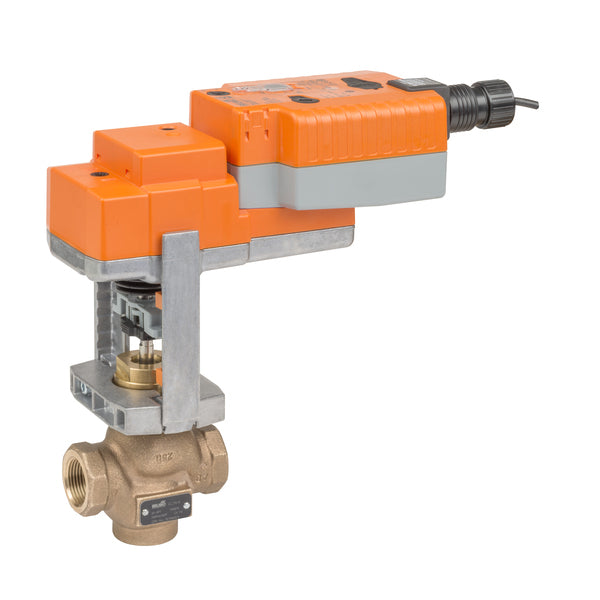

Belimo G220B-K+LVKB24-SR Globe Valve Assembly 2 Way 3/4 in.

Product Description

The Belimo G220B-K+LVKB24-SR is a globe valve assembly designed for various heating and cooling applications. It features a two-way design and connects with three-quarter inch piping. The valve is suitable for hydronic systems and provides reliable modulating control.

• Flow Capacity: 7.5 Cv
• Power: Operates at 24 VAC
• Fail-Safe: Electronic fail-safe functionality

Product Highlights

This valve is ideal for use in air handling units and fan coil units. It is designed for chilled water, hot water, and steam applications. The direct coupled actuator allows for quick response times, ensuring efficient system operations.

Product Information

Standard Information

• Brand: Belimo
• Part Number: G220B-K+LVKB24-SR

Technical Specifications

• Valve Size: 0.75 inches (20 mm)
• Cv: 7.5
• Fluid Compatibility: Chilled or hot water, up to 60% glycol, steam
• Power Consumption: 2.5 W running, 1.5 W holding
• Pressure Range: 15-100 psi inlet
• Operating Temperature: -22 F to 122 F (-30 C to 50 C)
• Degree of Protection: IP54 NEMA 2
• Installation Type: Internal thread
