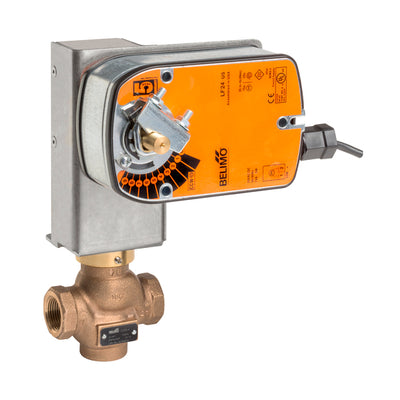

Belimo G220B-K+LF24-MFT Globe Valve 0.75 2 Way 7.5 Cv w/ Spring Return 24V MFT

Product Description

The Belimo G220B-K+LF24-MFT is a globe valve designed for efficient fluid control. With a size of three-quarters of an inch, this two-way valve is suitable for applications involving chilled or hot water with a glycol mixture. It features a spring return actuator optimized for operation at twenty-four volts.

• Valve Size: 0.75 inches
• Flow Rate: 7.5 Cv
• Internal thread for easy installation

Product Highlights

Ideal for HVAC systems using water or steam.

Product Information

Standard Information

• Brand: Belimo
• MPN: G220B-K+LF24-MFT

Technical Specifications

• Angle of Rotation: 90 degrees
• ANSI Class: 250
• Controllable Flow Range: Stem up - open A b AB
• Cv: 7.5
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol steam
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Bronze
• Valve Size: 0.75 [20]
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA 2
• Electrical Connection: cable
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 150 seconds / 90 degrees
• Voltage AC/DC: AC/DC 24 V
