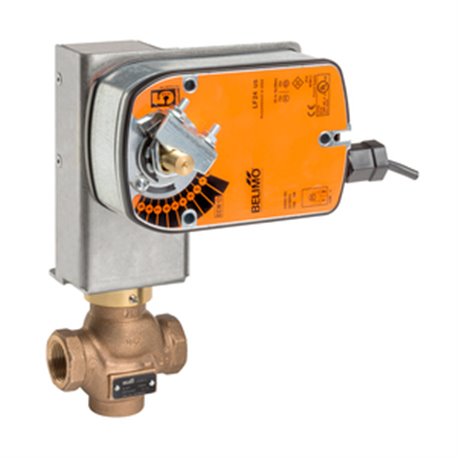

Belimo G220B-K+LF24 Globe Valve 0.75 2 Way 7.5 Cv w/ Spring Return 24V

Product Description

The Belimo G220B-K+LF24 is a globe valve designed for efficient control of fluid flow. This valve operates at a voltage of twenty-four volts and features a two-way pattern with a Cv rating of seven point five. It is equipped with a spring return actuator which enhances its functionality for on/off applications.

• Spring return actuator for reliable operation
• Two-way design with a Cv of 7.5
• Suitable for chilled or hot water with glycol

Product Highlights

This valve is ideal for HVAC systems, allowing for precise water flow control in both heating and cooling applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: G220B-K+LF24

Technical Specifications

• Valve Size: 0.75 inches
• Cv: 7.5
• Angle of Rotation: 90 degrees
• End Fitting: Internal thread
• Fluid Type: Chilled or hot water up to 60 percent glycol steam
• Pattern: 2-way
• Pressure Independent: No
• Trim Material: Bronze
• Actuator Type: Spring return
• Voltage: AC/DC 24V
• Degree of Protection: IP54 NEMA2
• Running Time (Motor): 75 seconds
• Power Consumption (Holding): 2.5 Watts
• Power Consumption (Running): 5 Watts
