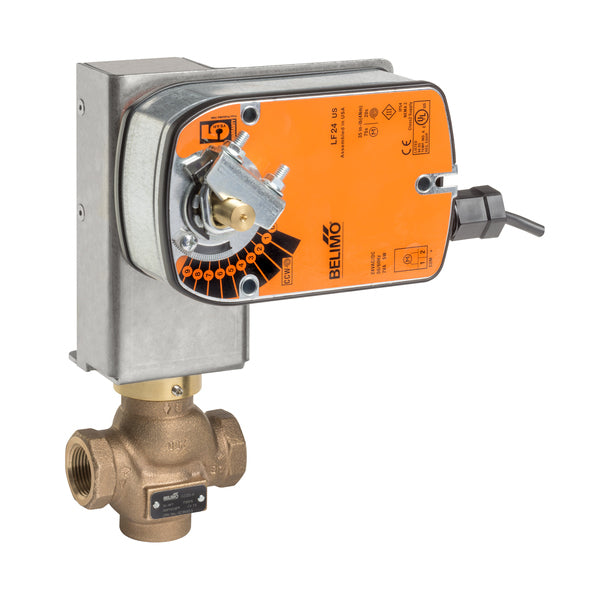

Belimo G220B-K+LF24-3-S Globe Valve 0.75 2 Way 7.5 Cv w/ Spring Return 24V

Product Description

Belimo G220B-K+LF24-3-S is a globe valve designed for efficient control of fluid flow. This model features a 0.75 inches size and functions as a two-way valve with a capacity of 7.5 Cv. It operates with a spring return actuator powered by a 24V AC/DC supply, making it suitable for various HVAC applications.

• Two-way operation for effective flow control.
• Spring return actuator for reliable performance.
• Designed for chilled or hot water up to 60% glycol and steam.

Product Highlights

Efficiently manages fluid flow in HVAC systems and ensures optimal performance with its robust design.

Product Information

Standard Information

• Brand: Belimo
• MPN: G220B-K+LF24-3-S

Technical Specifications

• Valve Size: 0.75 [20]
• Pattern: 2-way
• Cv: 7.5
• Angle of Rotation: 90
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol steam
• ANSI Class: 250
• Pressure Independent: NO
• Trim: Bronze
• Actuator Type: Spring return
• Auxiliary Switches: 1 x SPDT
• Degree of Protection: IP54 NEMA 2
• Electrical Connection: cable
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): <25 s
• Running Time (Motor): 150 s / 90°
• Voltage AC/DC: AC/DC 24 V
