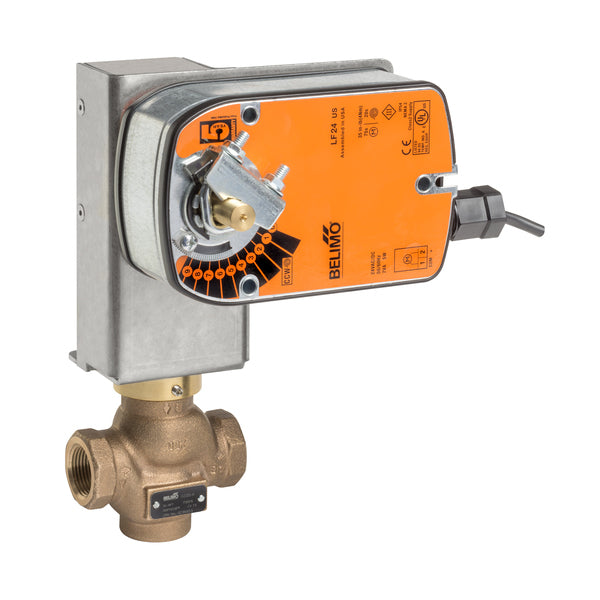

Belimo G220B-J+LF24-SR Globe Valve 0.75 2 Way 5.5 Cv w/ Spring Return 24V

Product Description

The Belimo G220B-J+LF24-SR is a globe valve designed for precise control in hydronic systems. This model features a size of three-quarters of an inch and operates as a two-way valve with a flow coefficient of 5.5. It is powered by twenty-four volts and includes a spring return mechanism. This valve is suitable for heating and cooling applications within air handling units and fan coil units.

• Two-way design for versatile applications
• Integrated spring return for reliable operation
• Compatibility with hydronic systems with variable flow

Product Highlights

Ideal for applications in air handling and VAV box systems, the G220B-J+LF24-SR valve ensures effective fluid control.

Product Information

Standard Information

• Brand: Belimo
• MPN: G220B-J+LF24-SR

Technical Specifications

• Valves Size: 0.75 inches
• Angle of Rotation: 90 degrees
• ANSI Class: 250
• Controllable Flow Range: Stem up - open A b AB
• Cv: 5.5
• End Fitting: Internal thread
• Fluid Compatibility: Chilled or hot water up to sixty percent glycol steam
• Pattern: 2-way
• Pressure Independent: No
• Trim Material: Bronze
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA2
• Electrical Connection: Cable
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Voltage: AC/DC 24 V
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 150 seconds / 90 degrees
