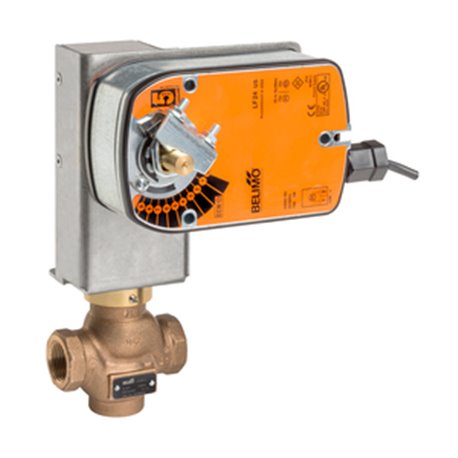

Belimo G220B-J+LF24-MFT | Globe Valve | 0.75 | 2 Way | 5.5 Cv | w/ Spring Return | 24V | MFT

Product Description

This Belimo G220B-J+LF24-MFT globe valve is designed for controlling fluid flow in various systems. It features a valve size of three-quarters of an inch, operates as a two-way valve, and has a flow coefficient (Cv) rating of 5.5. This product is suitable for both chilled and hot water applications with up to sixty percent glycol content. The actuator type is spring return, ideal for fail-safe operations.

• Valve Size: 0.75 inches
• Operating Voltage: 24V AC/DC
• Flow Type: 2-way

Product Highlights

Utilize this globe valve for reliable control of water flow in HVAC and plumbing systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: G220B-J+LF24-MFT

Technical Specifications

• Angle of Rotation: 90 degrees
• ANSI Class: 250
• Controllable Flow Range: Stem up - open A b AB
• Cv: 5.5
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol steam
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Bronze
• Valve Size: 0.75 inches
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA 2
• Electrical Connection: Cable
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 150 seconds / 90 degrees
• Voltage AC/DC: 24 V
